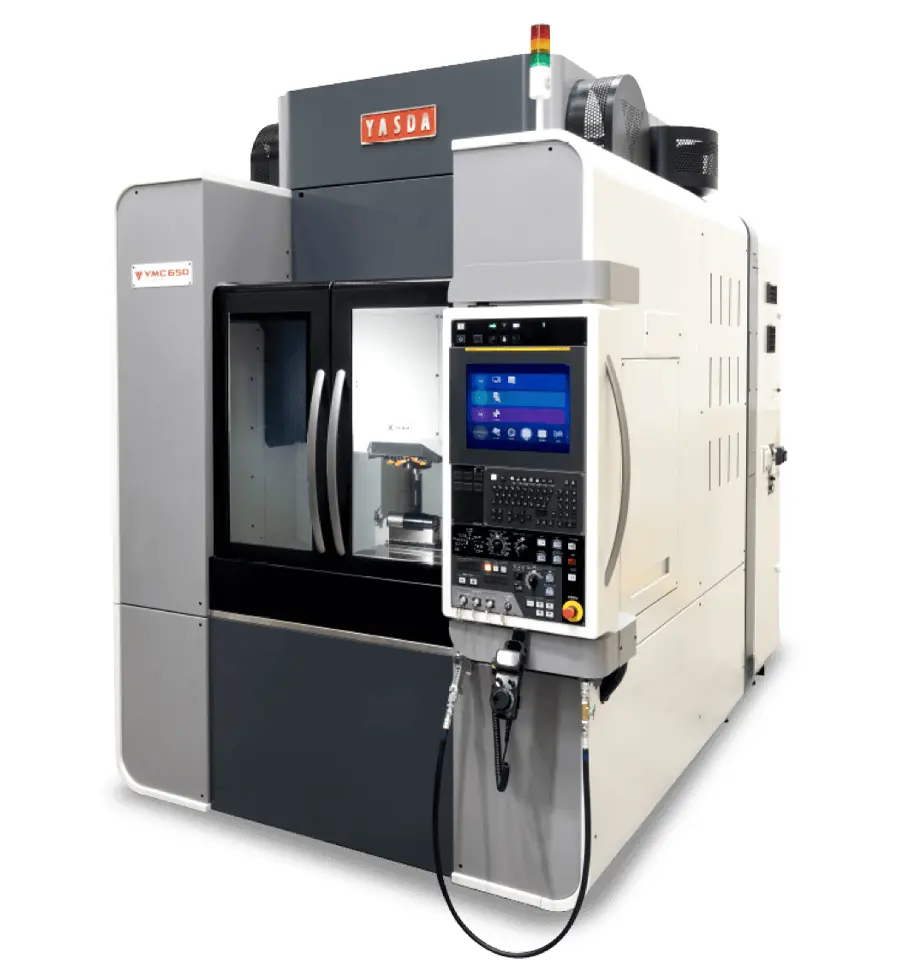

Yasda YMC 650 Vertical 3-Axis Micro Center
Spec | YMC 650 |
| Accuracy [ISO230-2 (2014)] | 0.8, 0.6, 0.4μm |
| Travel (X, Y, Z-axis) | 600 x 500 x 280mm 23.62 x 19.69 x 11.02 inch |
| Spindle RPM | 40,000min⁻¹ [35,000min⁻¹ (op)] |
| Spindle Taper | HSK-E32 [HSK-E40 (op)] |
| Table Working Size | 700 x 550mm 27.56 x 21.65 inch |
| Maximum Loading Capacity | 200kg 440.92 lbs |
| Rapid Traverse | Max. 20,000mm/min Max. 787.40 inch/min |
| ATC Capacity | 32 tools [Max. 90 tools (op)] |
| Axis | 3 |
| Type | Vertical |
