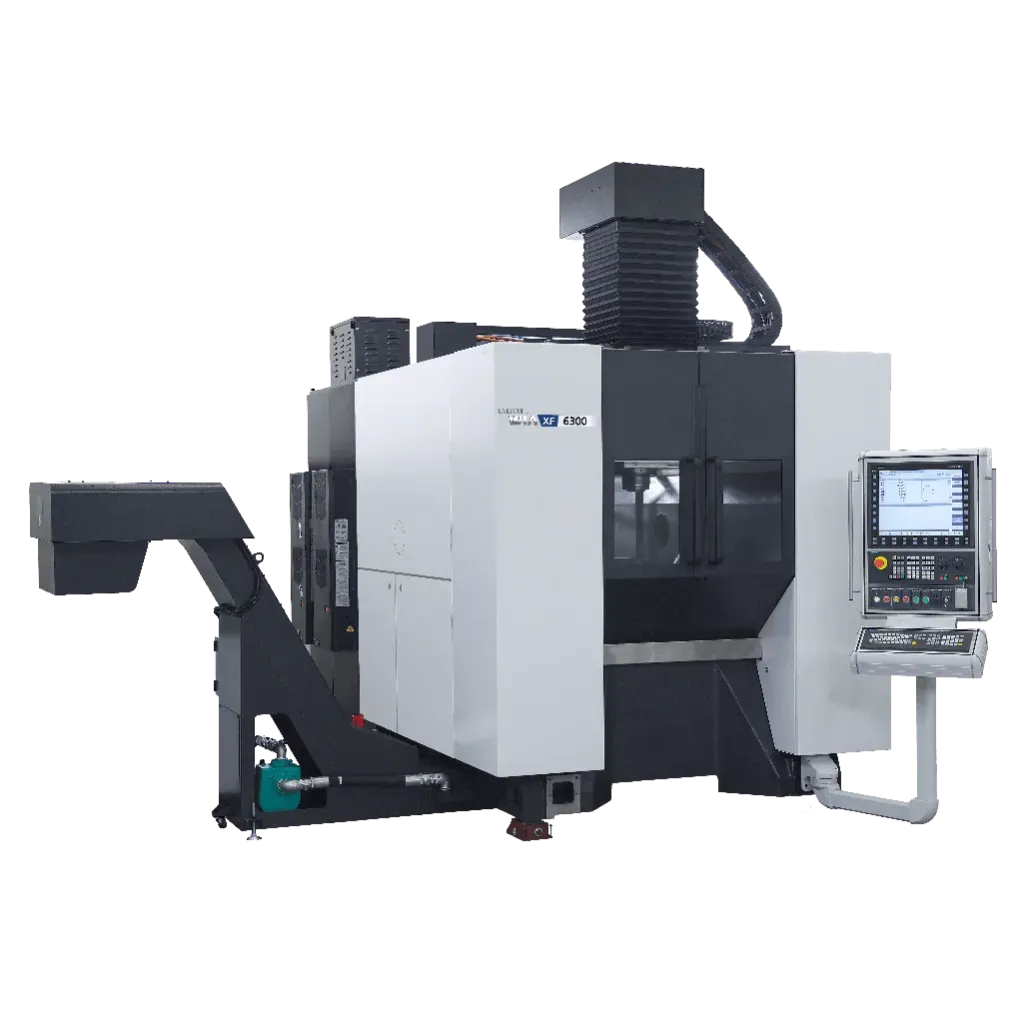

The Hyundai WIA XF6300 5-Axis Vertical Machining Center combines advanced technology, structural rigidity, and high precision for demanding composite and mold machining applications. Its monoblock bed design and X/Z-axis box-in-box structure help minimize vibration and thermal deformation, supporting excellent machining accuracy and superior surface finishes. The integrated tilting rotary table enables simultaneous 5-axis machining of complex components, while the built-in spindle and flexible tool magazine support versatile production requirements. Ideal for mold and die manufacturing, aerospace, automotive, and precision component production, the XF6300 delivers reliable performance, exceptional accuracy, and consistent machining quality.
Control | Siemens 840D sl Controller
|
Spindle | 15,000
RPM Build in Spindle |
Spindle Power | Powerful 42 HP (31 kW) Motor |
Spindle Taper | HSK-A63 |
Table Size | Ø24.8" (Ø630mm) |
Max Load Capacity | 1,323 lbs
(600kg) |
Travel (X/Y/Z) | 25.6" / 23.6" / 19.7" (650mm / 600mm / 500mm) |
Rapid Feed (X/Y/Z) | 2,362 / 2,362 / 2,362
IPM (60
/ 60 / 60 m/min) |
Number of Tools | 34 (More Tools Available as Option) |
