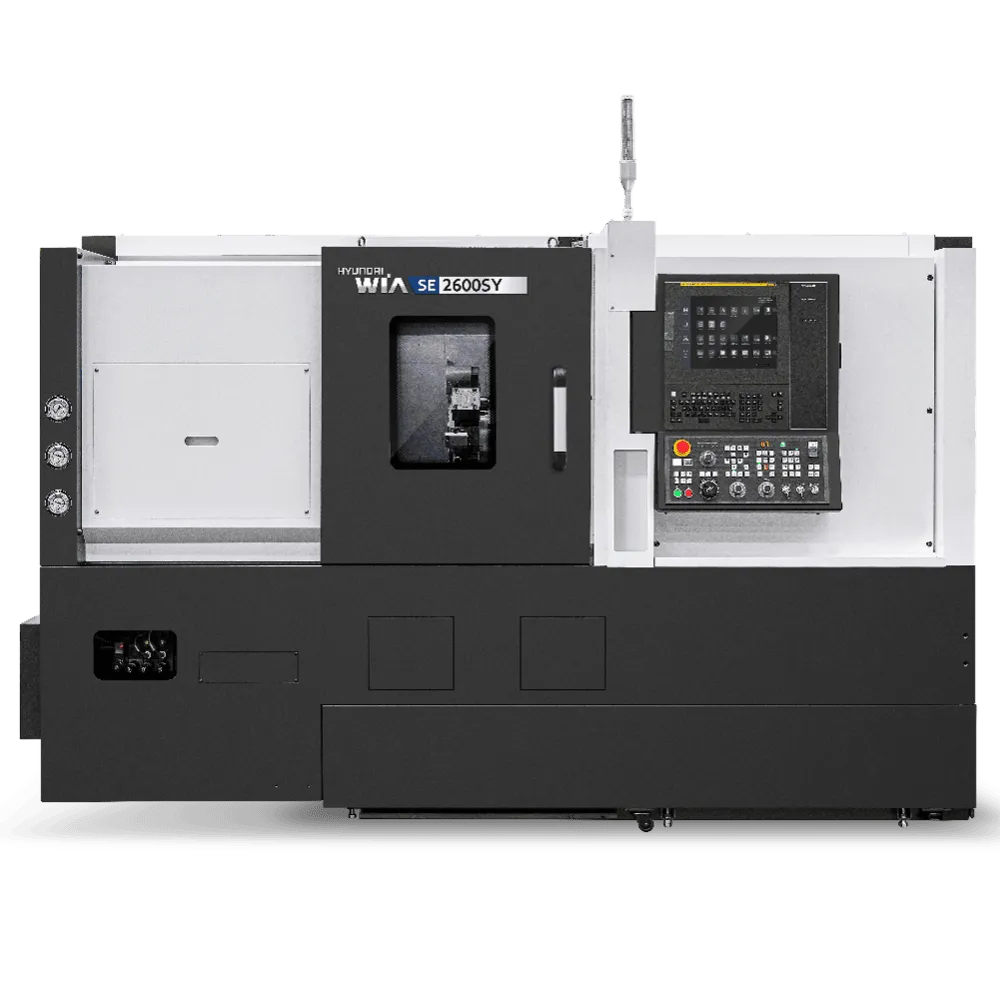

The Hyundai WIA SE2600Y/SY CNC Turning Center combines rigidity, precision, and advanced multitasking capabilities to meet the demands of modern manufacturing. Its 30° slant-bed design, developed using structural analysis, helps absorb vibration and maintain machining accuracy, while high-rigidity roller guideways provide stability for powerful cutting operations. With Y-axis machining capabilities and, on the SE2600SY, a sub-spindle for back-side machining, the series can produce complex components in fewer setups and reduce overall machining time. Ideal for automotive, aerospace, industrial equipment, and precision component manufacturing, the SE2600Y/SY delivers versatile performance and excellent value for manufacturers looking to improve productivity and part quality.
Control | Fanuc Smart Plus |
Main Spindle | 3,500 RPM Belt Driven |
Main Spindle Power | Powerful 25 HP (18.5 kW) Motor |
Main Spindle Chuck Size | 10" |
Bar Capacity | Ø3.2" (Ø81 mm) |
Sub Spindle (SY Only) | 10 HP (7.5 kW) |
Sub Spindle Chuck Size (SY Only) | 6" |
Max Turning Diameter | Ø15" (Ø380mm) |
Max Turning Length | 24.8" (630mm) |
Swing over Bed & Carriage | Ø24.8" (Ø630mm) |
Number of Tools | BMT 55,12 station 24
position turret |
