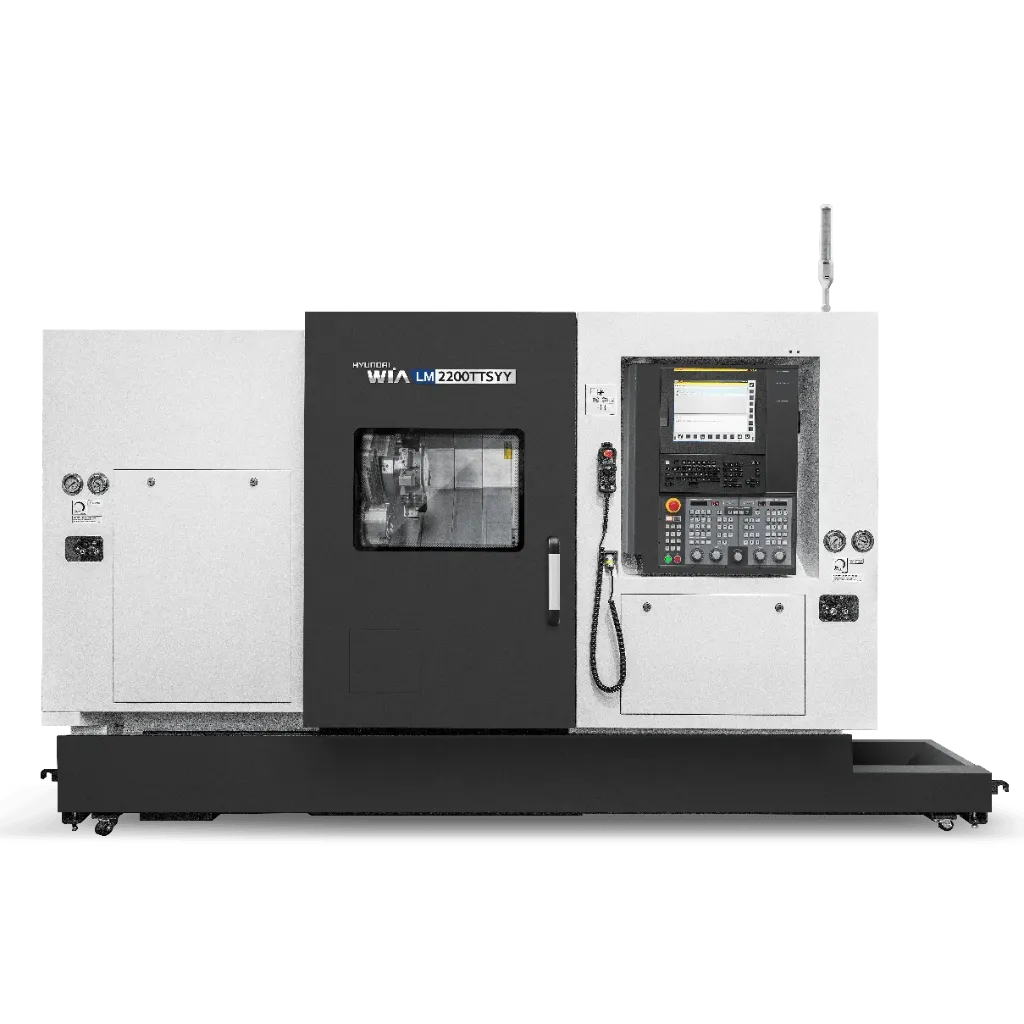

The Hyundai WIA LM2200TTSYY CNC Multi-Axis Turning Center combines advanced multitasking capabilities, precision, and productivity for demanding manufacturing applications. Its rigid machine bed is engineered to absorb vibration and minimize thermal displacement, supporting stable cutting performance and consistent accuracy. With twin spindles, upper and lower turrets, and dual Y-axis capabilities, the LM2200TTSYY can machine complex components on multiple sides and perform simultaneous operations in fewer setups. Ideal for automotive, aerospace, medical components, and precision part manufacturing, this versatile turning center delivers exceptional flexibility, reliable performance, and excellent value for modern production environments.
Control | Fanuc F0iF Plus |
Main & Sub Spindle | 4,500 RPM Belt Driven |
Main & Sub Spindle Power | Powerful 25 HP (18.5 kW) Motors |
Main & Sub Spindle Chuck Size | 8" |
Main & Sub Spindle Bar Capacity | Ø2.6" (Ø65mm) |
Max Turning Diameter Upper & Lower | Ø9.1" (Ø230 mm) |
Max Turning Length | 26.5" (673mm) (Spindles Synchronized) 9.1" (230 mm) (Spindles Separated) |
Number of Tools | BMT55P Turret, 2 x 12 |
