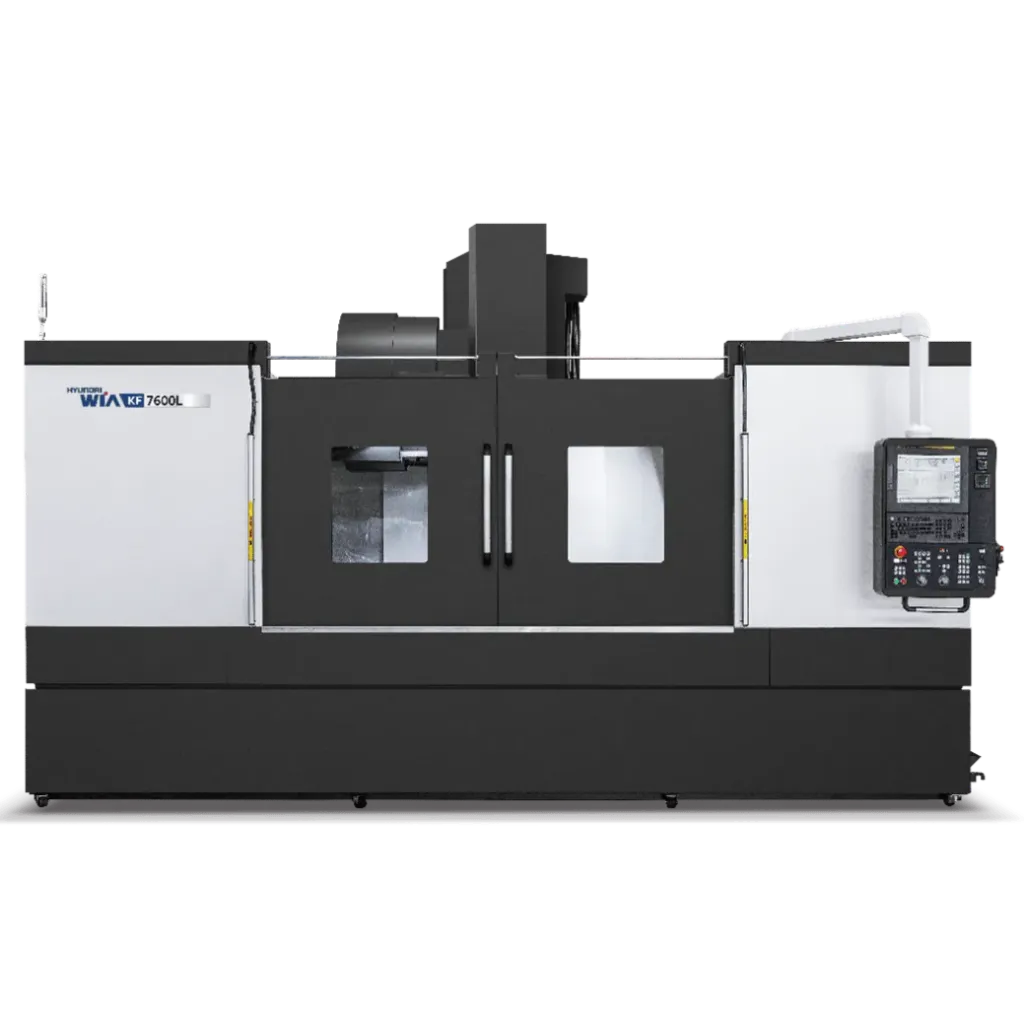

The HYUNDAI WIA KF7600L Vertical Machining Center combines structural rigidity, precision, and productivity for demanding manufacturing applications. Its wide machining area and large table are designed to accommodate long workpieces, while its rigid construction and roller guideways support stable machining and consistent accuracy. Offering reliable performance at an economical price, the KF7600L helps manufacturers improve productivity and profitability. Ideal for die and mold manufacturing, medical device production, automotive, aerospace, and precision machining, it provides the versatility and capacity needed to machine large components and complex contours efficiently.
Control | Fanuc Smart Plus
Control |
Spindle | 12,000 RPM Direct Driven |
Spindle Power | Powerful 25 HP (18.5 kW) Motor |
Spindle Taper | BCV #40 |
Table Size | 88.6" x 29.9"
(2,250 x 760mm) |
Max Load Capacity | 3,968
lbs (1,800 kg) |
Travel (X/Y/Z) | 82.7"
/ 29.9" / 25.0" (2,100 / 760 /
635mm) |
Rapid Feed (X/Y/Z) | 1,181 / 1,181 / 945
IPM (30 / 30 / 24 m/min) |
Number of Tools | 30 (options for more tools available) |
Thru Spindle Coolant | 290 PSI (1,000 PSI Available as Option) |
