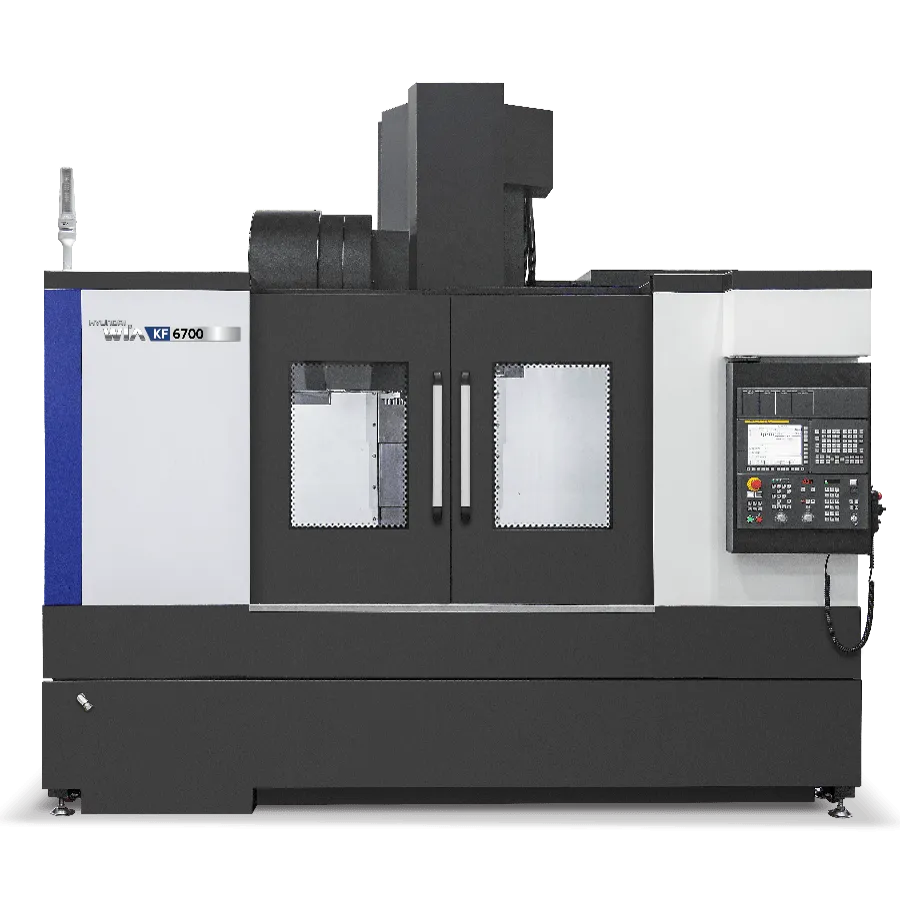

The Hyundai WIA KF6700B/50 II Vertical Machining Center combines robust construction, precision, and cost-effective performance to meet demanding manufacturing requirements. Its rigid machine structure supports stable machining and consistent accuracy, while its advanced design helps maximize productivity and operational efficiency. Built to deliver reliable performance at an economical price, the KF6700B/50 II is well suited for machining complex contours and tight-tolerance components. Ideal for medical device manufacturing, mold and die production, automotive, aerospace, and general precision machining, it offers an effective balance of rigidity, versatility, and value for manufacturers seeking to improve productivity and profitability.
Control | Fanuc i Series - Smart Plus
Control |
Spindle | 8,000 RPM Direct Driven |
Spindle Power | Powerful 25 HP (18.5 kW) Motor |
Spindle Taper | BCV #50 |
Table Size | 59" x 26.4" (1,500 x 670mm) |
Max Load Capacity | 2,866 lbs (1,300 kg) |
Travel (X/Y/Z) | 51.2" / 26.4" / 25" (1,300mm / 670mm / 635 mm) |
Rapid Feed (X/Y/Z) | 1,181 / 1,181 / 945 IPM (30 / 30 / 24 m/min) |
Number of Tools | 24 (options for more tools available) |
Thru Spindle Coolant | 290 PSI (1,000 PSI Available as Option) |
