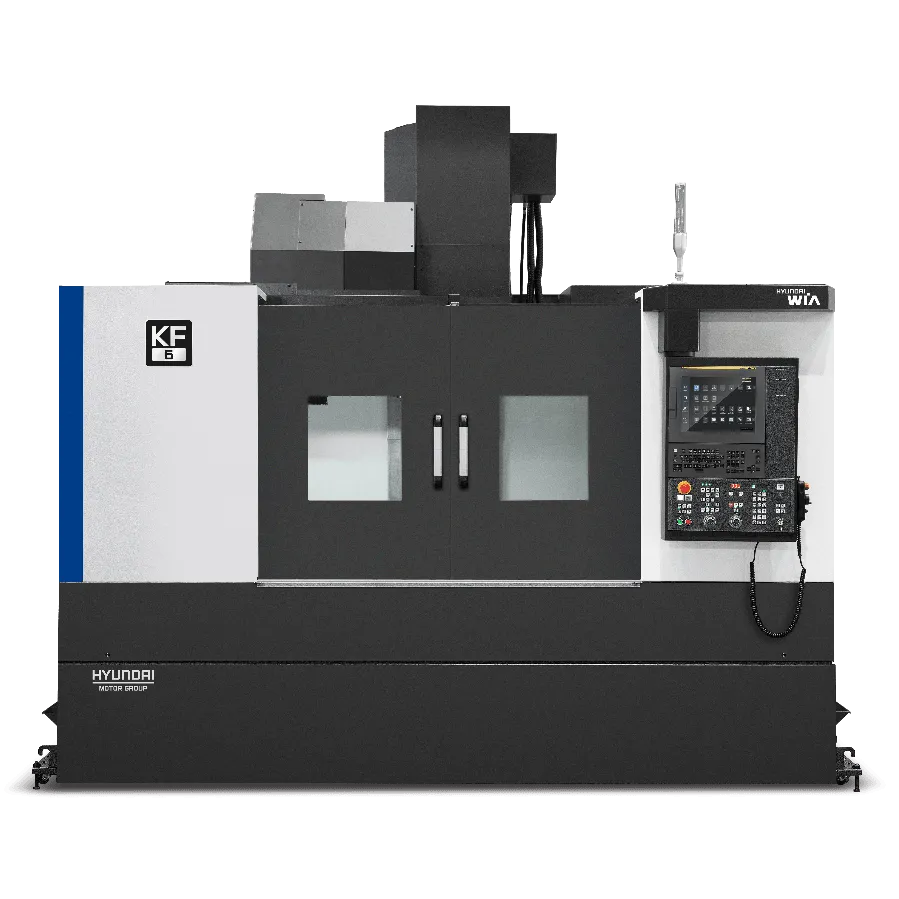

The Hyundai WIA KF6 Vertical Machining Center combines years of engineering expertise with advanced technology to deliver high productivity, exceptional stiffness, and rigidity at an economical price. Its robust construction supports stable machining and consistent results when producing complex contours and intricate geometries. Designed to maximize productivity and profitability, the KF6 offers an excellent balance of performance, precision, and value. It is ideally suited for die and mold manufacturing, medical component production, and general precision machining.
Control | Fanuc Smart Plus |
Spindle | 12,000 RPM Direct Driven |
Spindle Power | Powerful 25 HP (18.5 kW) Motor |
Spindle Taper | BCV #40 (50 Taper Available) |
Table Size | 59.1" x 26.4" (1,500 x 670mm) |
Max Load Capacity | 2,866 lbs (1,300 kg) |
Travel (X/Y/Z) | 51.2” / 26.4" / 25" (1,300mm / 670mm / 635mm) |
Rapid Feed (X/Y/Z) | 1,417 / 1,417 / 1,181 IPM (36 / 36 / 30 m/min) |
Number of Tools | 30 |
Thru Spindle Coolant | 290 PSI (1,000 PSI Available as Option) |
