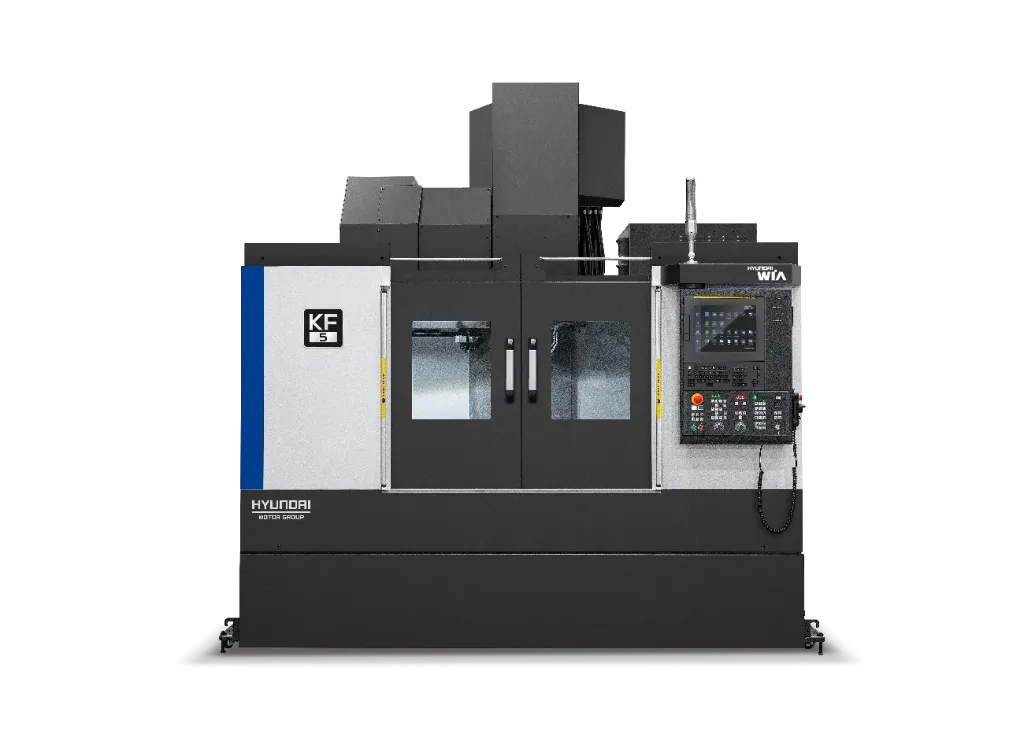

The Hyundai WIA KF5 Vertical Machining Center (VMC) combines precision, rigidity, and high productivity to meet the demands of modern manufacturing. Its robust construction, high-speed machining capabilities, and rapid tool changes help minimize non-cutting time while maintaining consistent part quality. Ideal for die and mold manufacturing, medical device production, aerospace, automotive, and general precision machining, the KF5 offers versatile spindle options and reliable performance for a wide range of applications. With its balance of accuracy, efficiency, and cost-effectiveness, the KF5 is an excellent choice for manufacturers looking to increase throughput and maximize productivity.
Control | Fanuc Smart Plus |
Spindle | 12,000 RPM Direct Driven |
Spindle Power | Powerful 25 HP (18.5 kW) Motor |
Spindle Taper | BCV #40 |
Table Size | 51.2" x 22.0" (1,300 x 560mm) |
Max Load Capacity | 2,205 lbs (1,000 kg) |
Travel (X/Y/Z) | 41.3" / 22" / 20.1" (1050mm / 560mm / 510mm) |
Rapid Feed (X/Y/Z) | 1,417 / 1,417 / 1,181 IPM (36 / 36 / 30m/min) |
Number of Tools | 30 (options for more tools available) |
Thru Spindle Coolant | 290 PSI (1,000 PSI Available as Option) |
