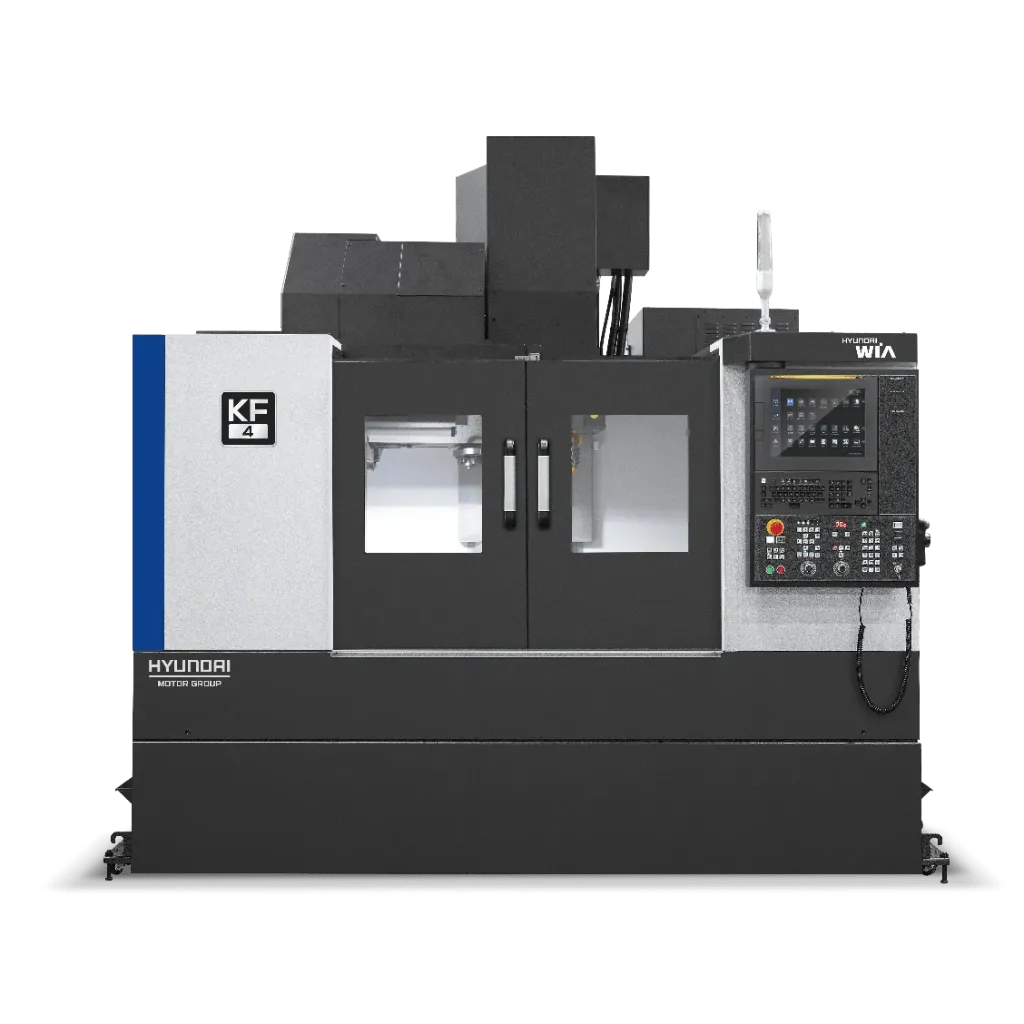

The Hyundai WIA KF4 Vertical Machining Center combines years of engineering expertise with advanced technology to deliver high productivity, precision, and exceptional rigidity at an economical price. Its rigid machine structure and high-precision spindle support stable machining performance, while high-speed roller guideways and an efficient tool-change system help improve productivity and reduce downtime. Designed to handle complex contours and demanding machining requirements, the KF4 offers an excellent balance of performance, value, and profitability. It is ideally suited for die and mold production, medical components, and general precision manufacturing.
Control | Fanuc Smart Plus |
Spindle | 8,000 RPM Direct Driven |
Spindle Power | Powerful 25 HP (18.5 kW) Motor |
Spindle Taper | BCV #40 |
Table Size | 39.4" x 17.7" (1,000 x 450 mm) |
Max Load Capacity | 1,323 lbs (600 kg) |
Travel (X/Y/Z) | 31.5” / 17.7" / 20.1” (800mm / 450mm / 510mm) |
Rapid Feed (X/Y/Z) | 1,417 / 1,417 / 1,181 IPM (36 / 36 / 30 m/min) |
Number of Tools | 30 (options for more tools available) |
Thru Spindle Coolant | 290 PSI (1,000 PSI Available as Option) |
