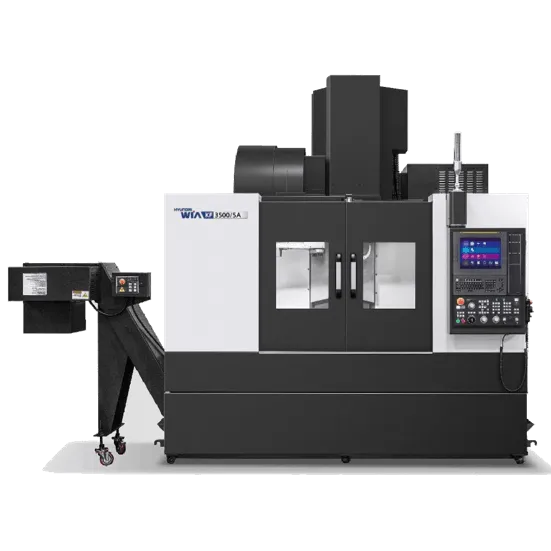

The Hyundai WIA KF3500/5A 5-Axis Vertical Machining Center combines high precision, rigidity, and productivity for complex contour and multi-surface machining. Its 5-axis tilting rotary table and roller gear cam drive enable accurate, efficient machining of intricate workpieces, while high-rigidity roller guideways and an optimized machine structure support stable cutting performance. A high-precision spindle and automatic tool changer further enhance machining quality and productivity. With a compact footprint and cost-effective design, the KF3500/5A delivers excellent value for manufacturers in aerospace, automotive, medical, mold and die, and precision engineering industries.
Control | Fanuc 31i-B5 Control |
Spindle | 12,000
RPM Direct drive |
Spindle Power | Powerful 25 HP (18.5 kW) Motor |
Spindle Taper | BBT #40 |
Table Size | Ø13.8" (Ø350mm) |
Max Load Capacity | 551 lbs
(250kg) |
Travel (X/Y/Z) | 23.6" / 25.8" / 19.7" (600mm / 655mm / 500mm) |
Rapid Feed (X/Y/Z) | 1,417 / 1,417 / 1,181 IPM (36
/ 36 / 30 m/min) |
Number of Tools | 40 (More Tools Available as Option) |
