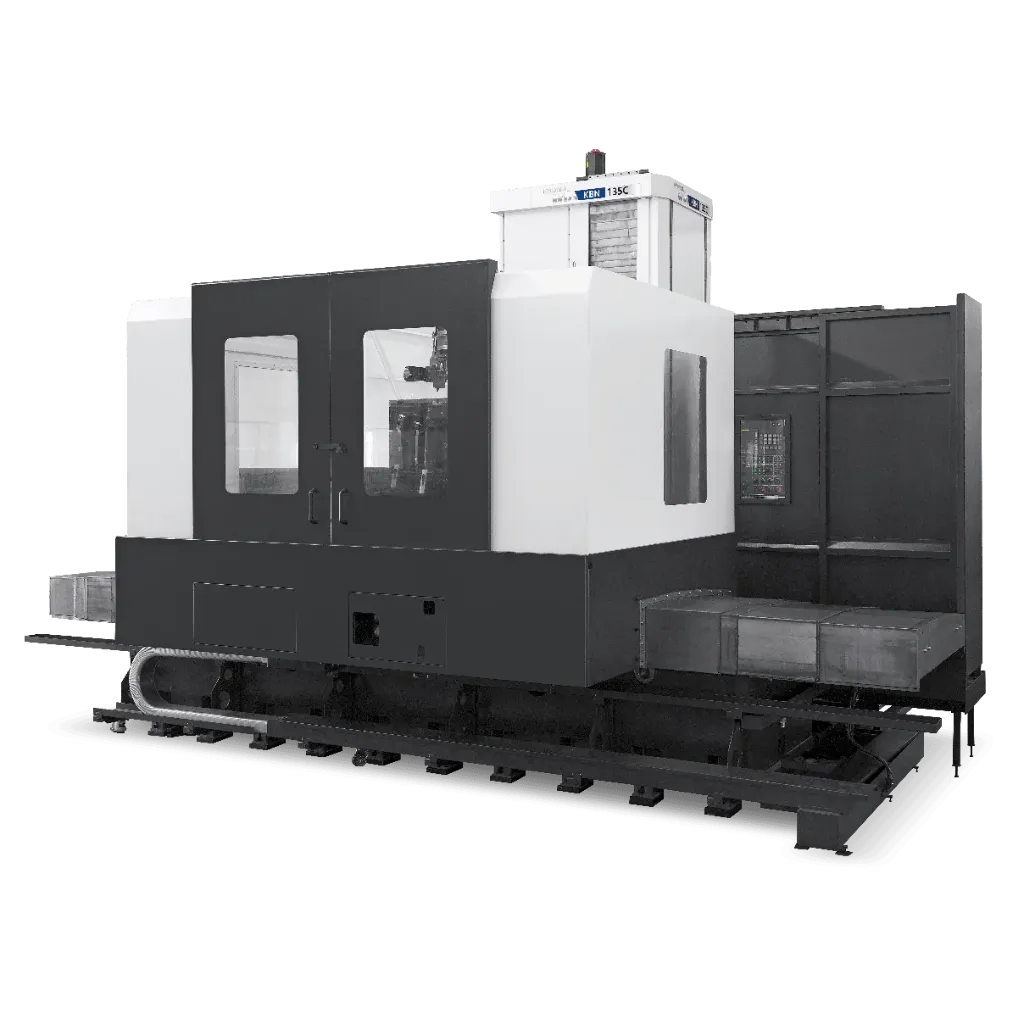

The Hyundai WIA KBN135C CNC Horizontal Boring Machine combines heavy-duty cutting capability, precision, and productivity for demanding applications. Its robust moving-column design provides high rigidity for accurately machining large, heavy workpieces. A powerful three-step geared spindle delivers high torque for challenging boring and cutting operations, while precision linear and rotary scales ensure accurate positioning. An NC rotary table and automatic pallet changer enhance flexibility and streamline workpiece handling. Ideal for heavy equipment, energy, industrial machinery, and large-component manufacturing, the KBN135C delivers reliable performance in demanding production environments.
Control | Fanuc 31i-B |
Spindle | 2,500
RPM with 3 Speed Geared Spindle |
Spindle Power | Powerful 35 HP (26 kW) Motor |
Spindle Taper | CAT50 |
Table Size | 78.7" x 70.9" (2,000 x 1,800mm) |
Max Load Capacity | 33,069 lbs (15,000 kg) |
Travel (X/Y/Z/W) | 118.1" / 78.7" / 59.0" / 27.6" (3,000mm / 2,000mm / 1,500mm 700mm) |
Rapid Feed (X/Y/Z/W) | 393 / 393 / 393 / 315 IPM (10 / 10 / 10 / 8 m/min) |
Number of Tools | 60 (More Tools Available as Option) |
