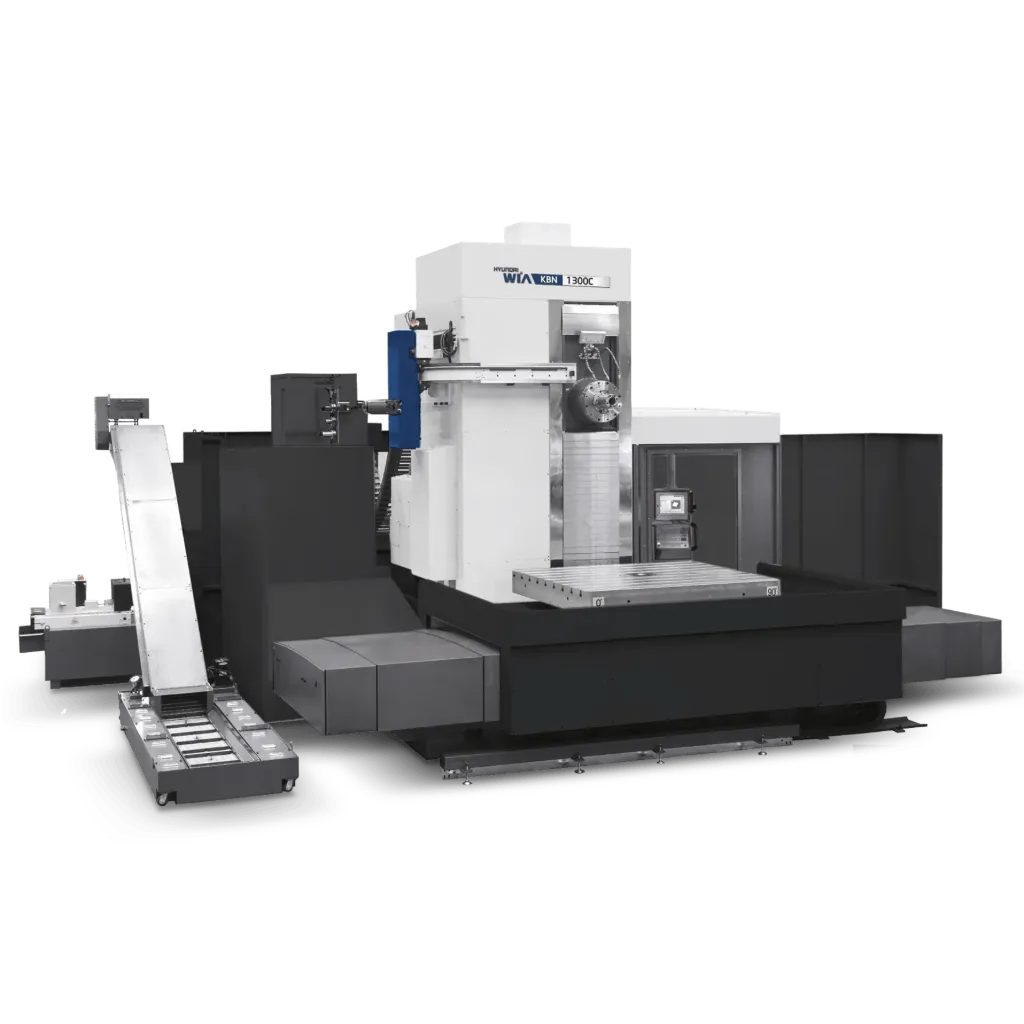

The Hyundai WIA KBN1300C CNC Horizontal Boring Machine combines heavy-duty cutting capability, precision, and versatility for demanding metalworking applications. Its rigid one-piece bed construction, high-torque geared spindle, and precision positioning systems help maintain accuracy when machining large, complex components. The column-moving design, extended axis travel, and rotary table support flexible machining, while the large worktable accommodates workpieces weighing up to 15,000 kg, with higher capacity available as an option. Ideal for heavy equipment, industrial machinery, energy, and large-scale component manufacturing, the KBN1300C delivers reliable performance and consistent machining quality for challenging production requirements.
Control | Fanuc 31i-B |
Spindle | 2,500
RPM with 2 Step Gear Box |
Spindle Power | Powerful 50 HP (37 kW) Motor |
Spindle Taper | CAT50 |
Table Size | 78.7" x 70.9" (2,000 x 1,800mm) |
Max Load Capacity | 33,069 lbs (15,000 kg) |
Travel (X/Y/Z/W) | 118.1" / 78.7" / 59.0" / 27.6" (3,000mm / 2,000mm / 1,500mm 700mm) |
Rapid Feed (X/Y/Z/W) | 393 / 393 / 393 / 315 IPM (10 / 10 / 10 / 8 m/min) |
Number of Tools | 60 (More Tools Available as Option) |
