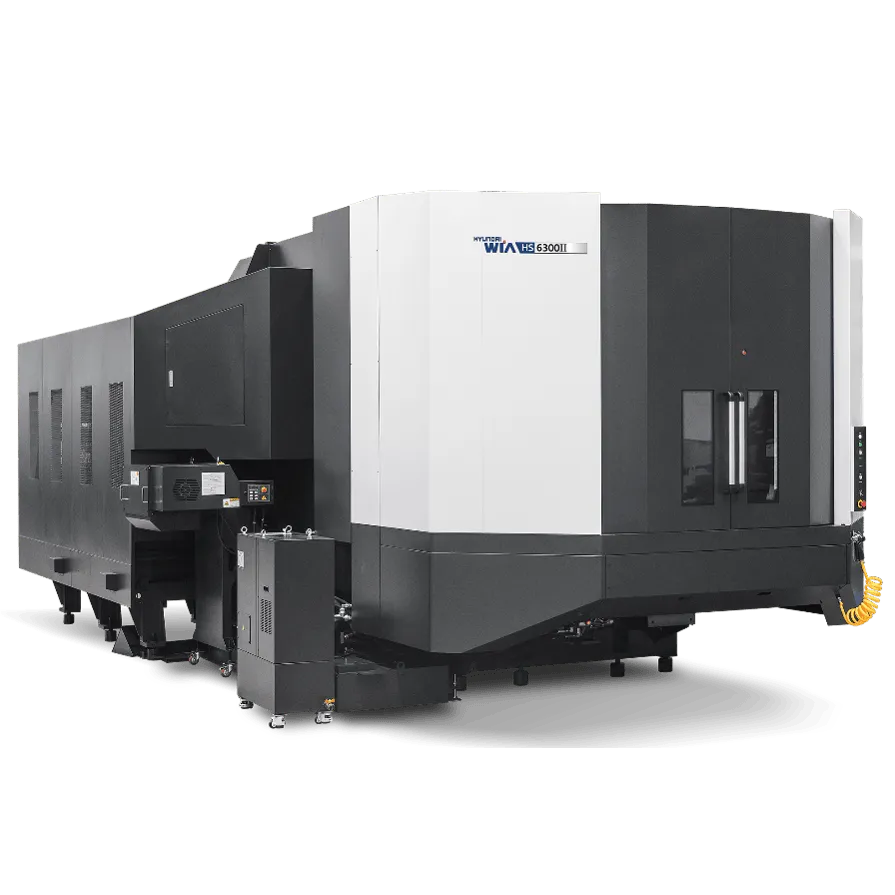

The Hyundai WIA HS6300II Horizontal Machining Center delivers exceptional rigidity, precision, and reliability for demanding manufacturing applications. Its robust box-type structure helps absorb vibration and maintain accuracy during heavy-duty cutting operations. An automatic pallet changer and flexible tool magazine options support efficient production and reduce manual intervention. Its versatile work envelope and substantial pallet load capacity accommodate a wide range of complex components. Ideal for automotive, aerospace, heavy equipment, and precision component manufacturing, the HS6300II combines dependable performance, versatile machining capabilities, and consistent part quality for modern metalworking operations.
Control | Fanuc 31i-B |
Spindle | 10,000 RPM Built-in Spindle |
Spindle Power | Powerful 60.3 HP (45 kW) Motor |
Spindle Taper | BCV
#50 |
Number of Pallets | 2 |
Pallet Size | 24.8" x 24.8" (630 x 630mm) |
Max Load Capacity | 3,307
lbs (1,500 kg) |
Travel (X/Y/Z) | 41.3" / 35.4" / 39.4" (1,050mm / 900mm / 1,000mm) |
Rapid Feed (X/Y/Z) | 2,362 / 2,362 / 2,362 IPM (60 / 60 / 60m/min) |
Number of Tools | 90 (More Tools Available as Option) |
Thru Spindle Coolant | 1.015 PSI |
