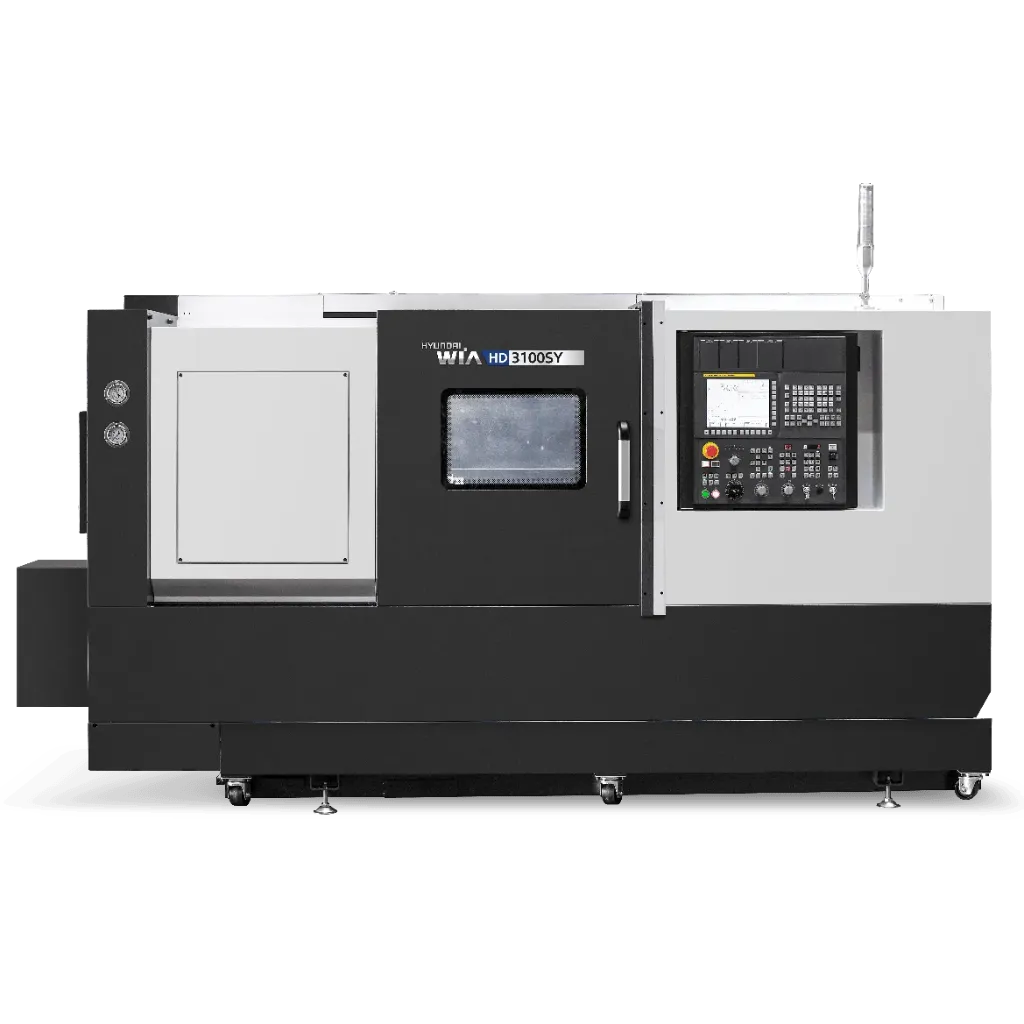

The Hyundai WIA HD3100Y CNC Turning Center combines heavy-duty cutting performance, rigidity, and precision for demanding machining applications. Its 30° slant-bed design, developed using finite element analysis (FEA), helps absorb vibration and minimize thermal displacement, while box guideways on the X, Y, and Z axes provide enhanced rigidity and stability during powerful cutting operations. With integrated Y-axis milling capabilities and advanced machining technology, the HD3100Y is well suited for automotive components, industrial equipment, heavy machinery, and precision part production, delivering reliable performance and excellent value across a range of applications.
Control | Fanuc i Series Smart Plus
controller |
Main Spindle | 2,800 RPM Belt Driven |
Main Spindle Power | Powerful 35 HP (26kW) Motor |
Main Spindle Chuck Size | 12" |
Bar Capacity | Ø4.0" (Ø102mm) |
Max Turning Diameter | Ø16.5" (Ø420mm) |
Max Turning Length | 29.9" (760mm)
|
Swing over bed | Ø31.5" (Ø800mm) |
Swing over carriage | Ø26.4" (Ø670mm) |
Number of Tools | BMT65P Turret, 12 station 24
position |
