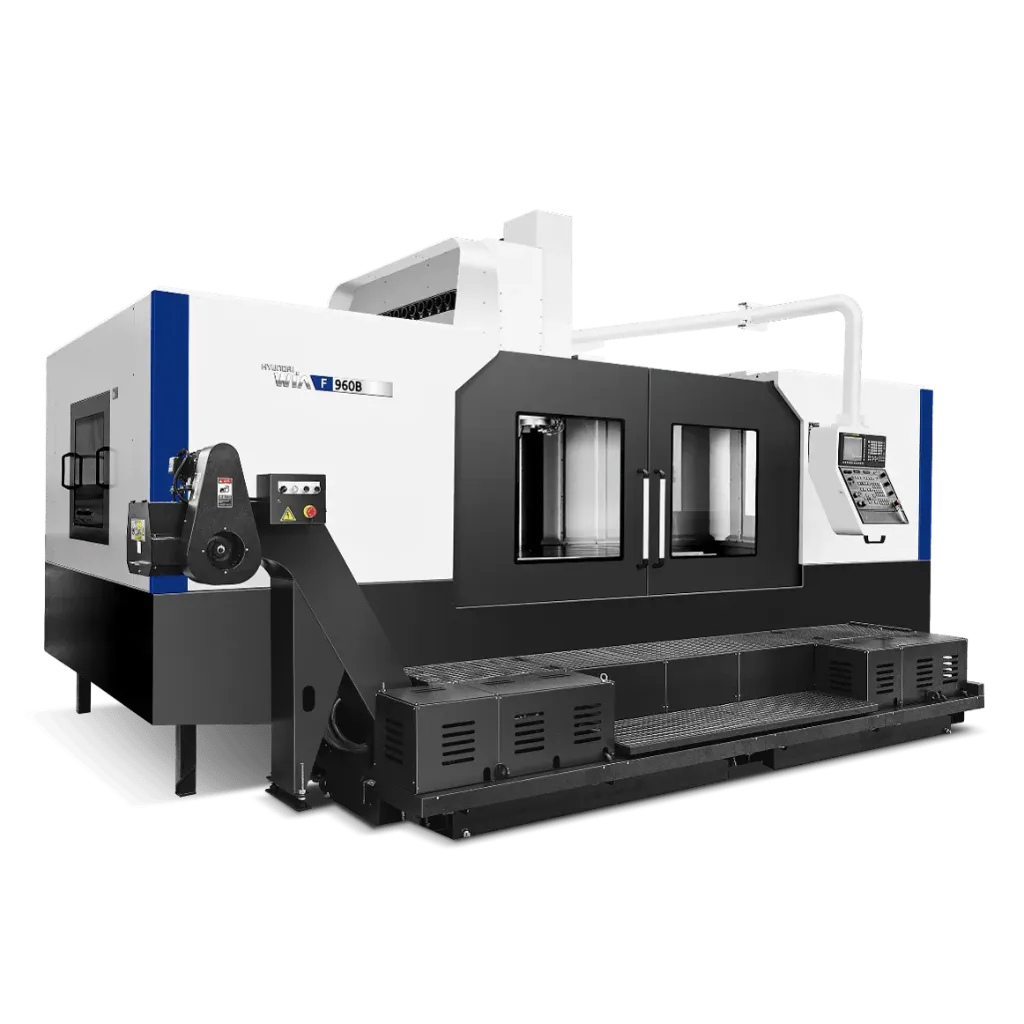

The Hyundai WIA F960B Vertical Machining Center (VMC) is engineered for heavy-duty cutting, high precision, and reliable productivity. Its rigid structure, box guideways across all axes, and powerful geared spindle help minimize vibration and maintain accuracy during demanding machining operations. With a large work area and a table load capacity of up to 4,500 kg, the F960B is well suited for die and mold manufacturing, medical device production, aerospace, automotive, and heavy industrial machining. Combining robust cutting performance with versatile spindle options and an efficient automatic tool-changing system, the F960B delivers dependable accuracy and excellent value for manufacturers machining large, complex, and tight-tolerance components.
Control | Fanuc i Control |
Spindle | 8,000 RPM 2 Step Gear Driven Spindle |
Spindle Power | Powerful 30 HP (20kW) Motor |
Spindle Taper | BCV
#50 |
Table Size | 106.3" x 37.4" (2,700 x 950mm) |
Max Load Capacity | 9,921 lbs (4,500kg) |
Travel (X/Y/Z) | 96.5" / 37.8" / 33.5"
(2,450mm / 960mm / 850mm) |
Rapid Feed (X/Y/Z) | 630 / 960 / 787 IPM (16 / 16 / 20m/min) |
Number of Tools | 30 (options for more tools available) |
Thru Spindle Coolant | 435 PSI (1,000 PSI Available as Option) |
