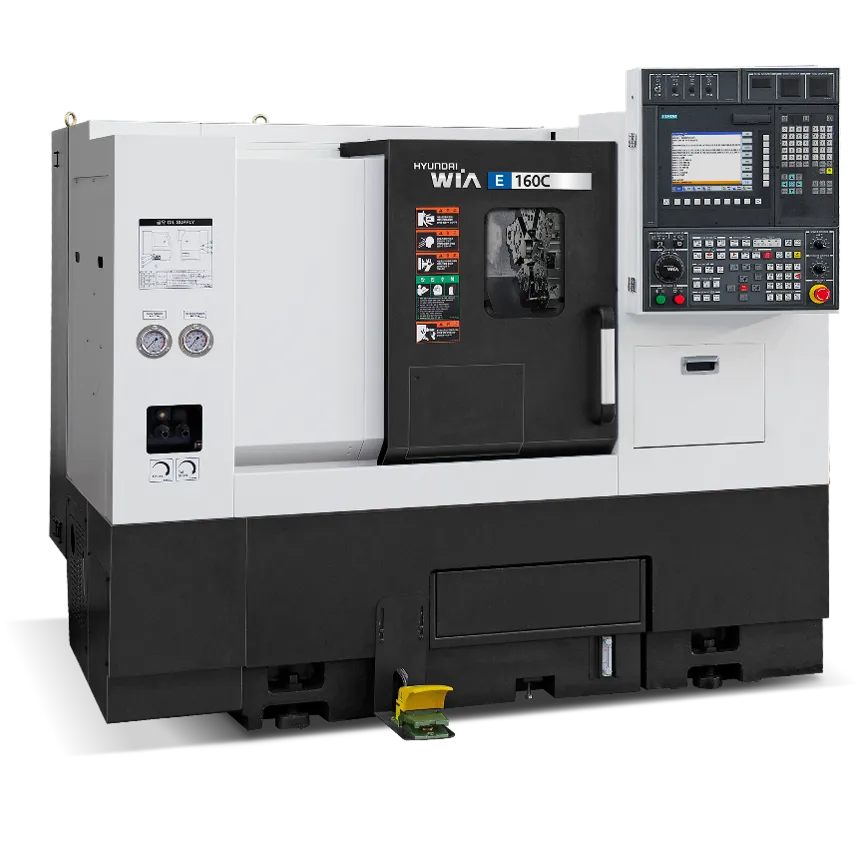

The Hyundai WIA E160C CNC Turning Center features a rigid 45° slant-bed design developed to absorb vibration and minimize thermal displacement, providing a stable platform for powerful, precise cutting. Its one-piece bed structure and optimized rib design enhance rigidity and machining stability, while the high-precision spindle and servo turret support consistent accuracy and reliable performance. Combining advanced engineering with a compact, cost-effective design, the E160C delivers an excellent balance of productivity, precision, and value for automotive, industrial, and general precision manufacturing applications.
Control | Fanuc i Series controller |
Main Spindle | 4,000 RPM Belt Driven |
Main Spindle Power | Powerful 15 HP (11kW) Motor |
Main Spindle Chuck Size | 8" |
Bar Capacity | Ø2”
(Ø51mm) |
Max Turning Diameter | Ø11”
(Ø280mm) |
Max Turning Length | 11”
(280mm)
|
Swing over bed | Ø18.9”
(Ø480mm) |
Swing over carriage | Ø11.2” (Ø285mm) |
Number of Tools | 10 Position Turret |
