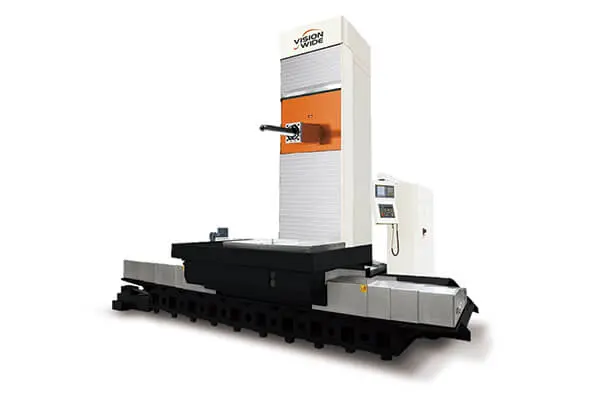

Vision Wide VBH-110-1416
Features
- Large workpieces are designed with heavy load ability.
- High stability and high precision box in box structure.
- High torque selection.
- The large worktable, greatly meets the machining applications of energy petroleum, shipbuilding, large structural parts, construction machinery, diesel engine body, etc.
Technical Specifications
X Axis Travel:
2,000 mm (Optional: 2,500 mm)
Y Axis Travel:
1,600 mm (Optional: 2,000 mm)
Z Axis Travel:
1,500 mm
W Axis Travel:
550 mm
Table Size (L × W):
1,400 × 1,600 mm
Max. Table Load (Central Area):
6,000 kg (Optional: 10,000 kg)
Distance from Spindle Nose to Table Center:
-25 ~ 525 ~ 2,025 mm
Distance from Spindle Center to Table Surface:
0 ~ 1,600 mm (Optional: 0 ~ 2,000 mm)
Spindle Speed:
3,500 rpm
Spindle Power (Continuous / 30 min):
18.5 kW / 22 kW
Spindle Torque (Continuous / 30 min):
972 Nm / 1,155 Nm
