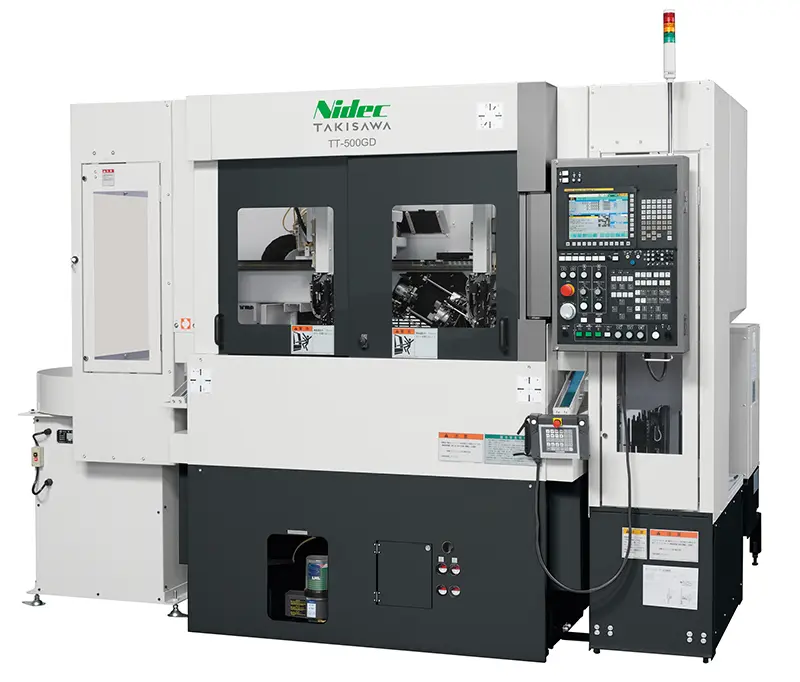

Takisawa TT-500GD
| Chuck Size | inch | 5+5 |
| Type of Turret | Comb Type Tool Slide | |
| Number of Attachable Tools, Tool Slide Width | mm | 5 Tools, 330 |
| Max. Turning Diameter | mm | φ50 |
| Max. Turning Length | mm | 50 |
| Spindle Speed | min-1 | 5000 [OP. 8000] |
| Rapid Traverse Rate | m/min | X : 20 / Z : 24 |
| Spindle Motor（15 min/continuous） | kW | 7.5/3.7 |
| Machine Height | mm | 2145 |
| Required Floor Space | mm | 2560×2512 |
| Machine Weight | kg | 4300 |
