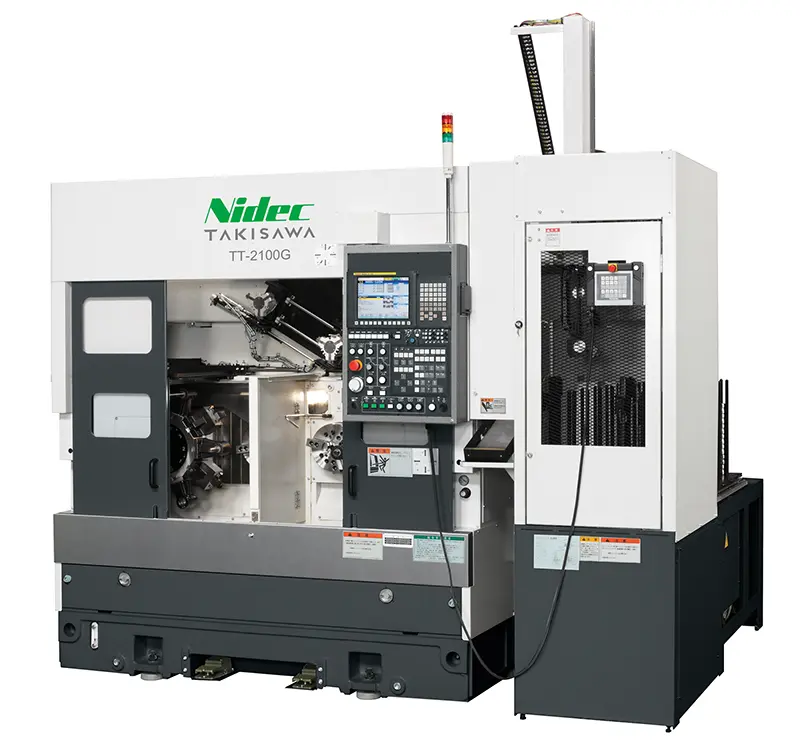

Takisawa TT-2100G

Chuck Size:

• 6+6 inch

• 8+8 inch

Type of Turret:

• 6+6 inch:

  • 10-Station Turret (All-Holder Type)

  • 12-Station Turret (All-Holder Type)

• 8+8 inch:

  • 10-Station Turret (All-Holder Type)

  • 12-Station Turret (All-Holder Type)

Max. Turning Diameter:

• φ240 mm

Max. Turning Length:

• 6+6 inch: 135.5 mm

• 8+8 inch: 94 mm

Spindle Speed:

• 6+6 inch: 4500 min⁻¹ [Optional: 6000 min⁻¹]

• 8+8 inch: 3200 min⁻¹ [Optional: 4500 min⁻¹]

Rotary Tool Speed:

• Not specified ("-")

Rapid Traverse Rate:

• X-axis: 24 m/min

• Z-axis: 24 m/min

Spindle Motor (15 min/continuous):

• 6+6 inch: 7.5/5.5 kW [Optional: 11/7.5 kW]

• 8+8 inch: 11/7.5 kW

Rotary Tool Motor (15 min/continuous):

• Not specified ("-")

Machine Height:

• 2700 mm

Required Floor Space:

• 2825 × 2615 mm

Machine Weight:

• 5200 kg
