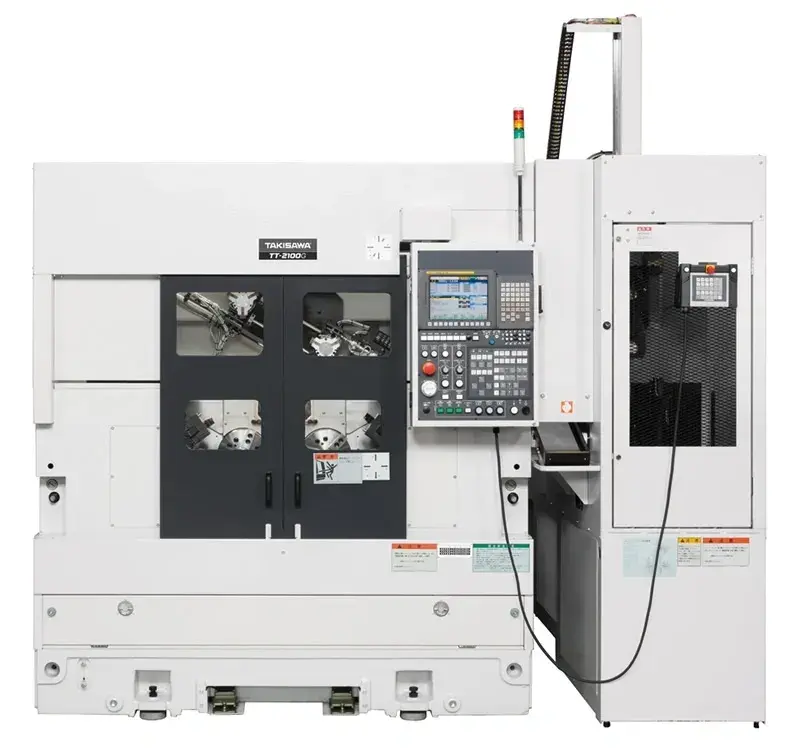

Takisawa TT-2100G

Features and Benefits

• Regenerative Energy System
• Oil / Water separator to extend coolant life
• High-Speed Gantry Loader
• 6" or 8" chuck (showing 6")

Technical Data

TRAVEL

• X-axis Travel -  142 mm (5.59")
• Z-axis Travel -  165 mm (6.5")

CAPABILITY / CAPACITY

• Distance Between Spindles - 340 mm (13.38")
• Maximum Turning Diameter - 240 mm (9.45")
• Maximum Turning Length - 135.5 mm (5.33")

SPINDLE

• Number of Spindles - 2
• Spindle Speed - 4500 min-1
• Spindle Nose (Nominal Code) - Φ140F
• Through-Hole Diameter - 53 mm (2.09")
• Bearing Inside Diameter - 80 mm (3.15")

TURRET (T10 STANDARD)

• Number of Attachable Tools - 10+10 Tools
• Number of Turrets - 2 Turrets
• Height of Square Tool Shank - 20 mm (0.75")
• Diameter of Boring Bar Shank - 25mm (1")

FEED RATE

• X-axis Rapid Traverse Rate - 24 m/min (944.88 inch/min)
• Z-axis Rapid Traverse Rate - 24 m/min (944.88 inch/min)
• Jog Feed Rate - X / Z: 0 mm/min ~ 1260 mm/min (0 inch/min ~ 49.61 inch/min)

MOTORS

• Main Spindle Motor - 7.5 kW (10 HP)(15 min.) / 5.5 kW (7.3 HP)(cont.)
• Feed Axis Motor - X / Z: 1.4 kW (1.9 HP)
• Hydraulic Pump Motor - 1.5 kW x2 Motors (2 HP x 2 Motors)
• Coolant Pump Motor - 0.25 kW x2 Motors (0.3 HP x2 Motors)

POWER REQUIREMENTS

• Electric Power - 33 kVA
• Air Pressure Source - 0.4 MPa

TANK CAPACITY

• Hydraulic Unit Tank - 20 L x2 (5.28 gal x2)
• Lubricant Tank - 6.5 L (1.72 gal)
• Coolant Tank - 350 L (92.40 gal)

MACHINE SIZE

• Machine Height - 2700 mm (106.30")
• Floor to Spindle Center Height - 975 mm (38.39")
• Required Floor Space - 2825 mm x 2615 mm (111.22" x 102.95")
• Machine Weight - 5200 kg (11,440 lbs)

LOADER SPECIFICATIONS

• Target Workpiece: Outside Diameter - 80 mm (3.15")
• Target Workpiece: Length - 80 mm (3.15")
• Target Workpiece: Weight - 0.7 kg x2 (1.5 lbs x2)
• X-axis Travel Running Speed - 1540 mm (60.63") / 200 m/min (7874.02 inch/min)
• Y-axis Travel Running Speed - 662 mm (26.06") / 150 m/min (5905.51 inch/min)
• Z-axis Travel Running Speed - 216 mm (8.5") / 50 m/min (1968.5 inch/min)
• Hand Type - 3 Jaws
• Hand Stroke - Φ28 mm (Φ1.1")

WORK FEEDER SPECIFICATIONS

• Number of Pallets - 16
• Loading Capacity (1 Pallet) - 40 kg (88 lbs)
• Maximum Height - 450 mm (17.72")
