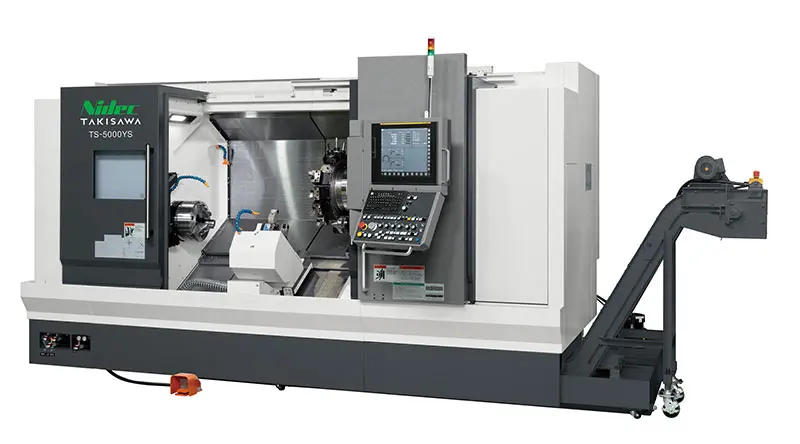

Takisawa TS-5000Y
| Chuck Size | inch | 12 | |||
| Type of Turret | 12-Station Turret （All-Holder Type） Standard | 10-Station Turret （All-Holder Type） | 15-Station Turret （All-Holder Type） | 20-Station Turret （All-Holder Type） | |
| Max. Turning Diameter | mm | φ370 | φ315 | φ292 | |
| Max. Turning Length | mm | 1300 | 1285 | 1300 | |
| Bar Capacity *1 | mm | φ102 [OP. φ82] | |||
| Left Spindle Speed | min-1 | 2500 [OP. 4200] | |||
| Rotary Tool Speed | min-1 | 6000 | |||
| Rapid Traverse Rate | m/min | X : 30 / Z : 30 / Y : 10 / A : 13 | |||
| Left Spindle Motor （30 min/continuous） | kW | 22/15 | |||
| Rotary Tool Motor （S3 25%/continuous） | kW | 7.5/3.7 | |||
| Machine Height | mm | 2300 | |||
| Required Floor Space | mm | 4105×2255 *2 | |||
| Machine Weight | kg | 8500 |
