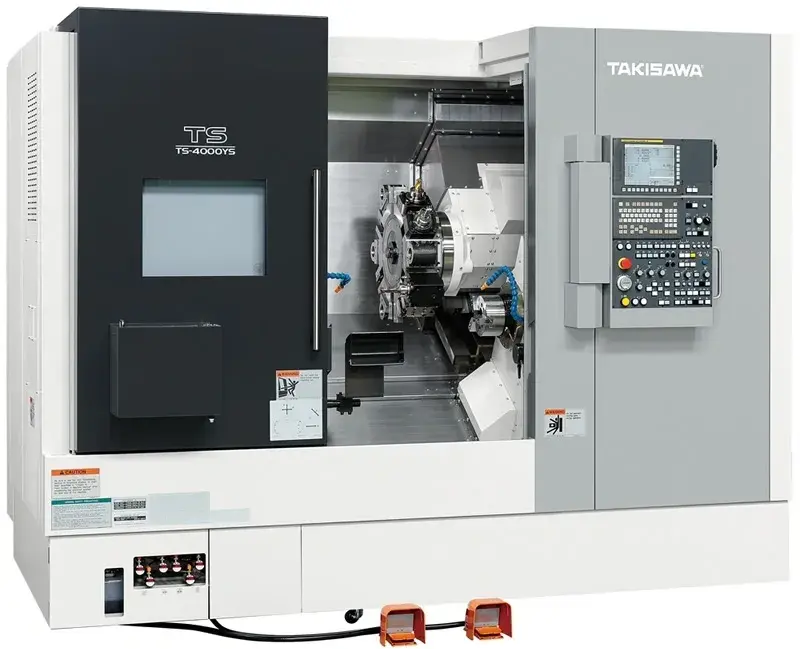

Takisawa TS-4000YS

Features and Benefits

• Main Spindle A2-8
• Y-axis Opposed Twin-Spindle
• Bigger Axis Configuration X / Z / Y / C1 / C2 / A
• 10 HP Live Tooling
• Stiff Box Guide Ways
• 12+ Station 10 HP Milling Turret Standard

Technical Data

TRAVEL

• X-axis Travel -  267 mm (10.51")
• Y-axis Travel -  -50mm ~ +70mm (-1.97" ~ +2.76")
• Z-axis Travel -  840 mm (33.07")
• A-axis Travel - 780 mm (30.71")

CAPABILITY / CAPACITY

• Maximum Swing - 600 mm (23.62")
• Standard Turning Diameter (T12) - 280 mm (11.02")
• Maximum Turning Diameter (T12) - 370 mm (14.57")
• Maximum Turning Length (T12) - 750 mm (29.53")
• Bar Capacity - 82 mm (3.23")

LEFT SPINDLE

• Spindle Speed - 4200 min-1
• Spindle Nose - A2-8
• Through-Hole Diameter - 94 mm (3.70")
• Bearing Inside Diameter - 140 mm (5.51")

RIGHT SPINDLE

• Spindle Speed - 6000 mm
• Spindle Nose - F140
• Through-Hole Diameter - 53 mm (2.09")
• Bearing Inside Diameter - 90 mm (3.54")

TURRET (T12 STANDARD)

• Number of Attachable Tools - 12 Tools
• Turret Opposite Side - 425 mm (16.73")
• Height of Square Tool Shank - 25 mm (1")
• Diameter of Boring Bar Shank - Left: 50 mm (2") / Right: 32 mm (1.25")

ROTARY TOOL

• Number of Rotary Tools - 12 Tools
• Spindle Speed - 6000 min-1
• Maximum Tool Shank Diameter - 26mm (1")
• Tool Spindle Taper Hole - AR40
• Tool Spindle Bearing Inside Diameter - 45 mm (1.77")

FEED RATE

• X / Z / A-axis Rapid Traverse Speed - 30 m/min (1181.10 inch/min)
• Y-axis Rapid Traverse Speed - 10 m/min (393.70")

MOTORS

• Spindle Motor - 22 kW (29.3 HP) (30 min) / 15 kW (20 HP) (cont.)
• Right Spindle Motor - 11 kW (14.7 HP) (30 min) / 7.5 kW (10 HP) (cont.)
• Rotary Tool Motor - 7.5 kW (10 HP) (S3 25%) / 3.7 kW (4.9 HP) (cont.)
• Feed Motor X / Z / Y-axis - 3.0 kW (4.0 HP)
• Feed Motor A-axis - 2.5 kW (3.3 HP)
• Hydraulic Pump Motor - 1.5 kW (2.0 HP)
• Coolant Pump Motor - 0.52 kW (0.7 HP)

POWER REQUIREMENTS

• Electric Power - 33 kVA

TANK CAPACITY

• Coolant Tank - 370 L (97.68 gal)

MACHINE SIZE

• Machine Height - 2300 mm (90.55")
• Height form: Floor to Spindle Centerline - 1140 mm (44.88")
• Required Floor Space - 3000 mm x 2140 mm (118.11" x 84.58") (without Oil Pan & Chip Conveyor
• Machine Weight - 6000 kg (13,200 lbs)
