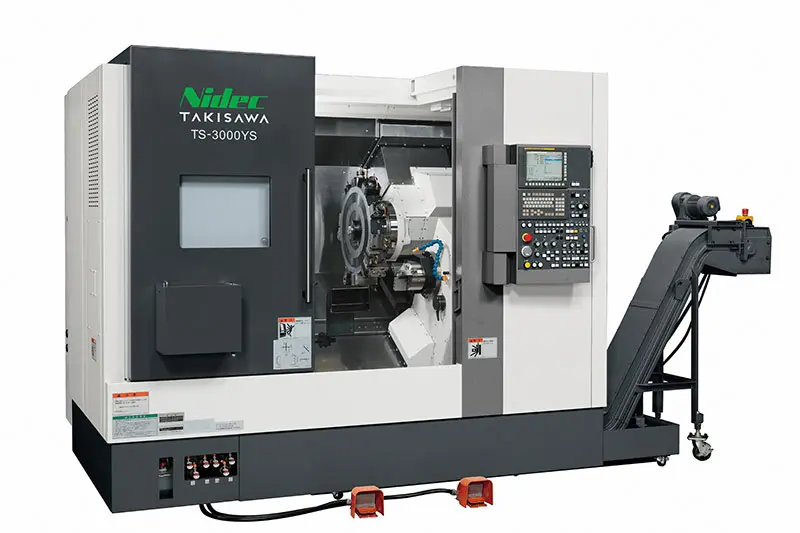

Takisawa TS-3000Y
| Chuck Size | inch | 8 | |||
| Type of Turret | 12-Station Turret （All-Holder Type） Standard | 10-Station Turret （All-Holder Type） | 15-Station Turret （All-Holder Type） | 20-Station Turret （All-Holder Type） | |
| Max. Turning Diameter | mm | φ370 | φ315 | φ292 | |
| Max. Turning Length | mm | 550 | 535 | 545 | |
| Bar Capacity *1 | mm | φ67 | |||
| Left Spindle Speed | min-1 | 5000 | |||
| Rotary Tool Speed | min-1 | 6000 | |||
| Rapid Traverse Rate | m/min | X : 30 / Z : 30 / Y : 10 / A : 13 | |||
| Left Spindle Motor （30 min/continuous） | kW | 15/11 | |||
| Rotary Tool Motor （S3 25%/continuous） | kW | 7.5/3.7 | |||
| Machine Height | mm | 2300 | |||
| Required Floor Space | mm | 2800×2070 *2 | |||
| Machine Weight | kg | 6000 |
