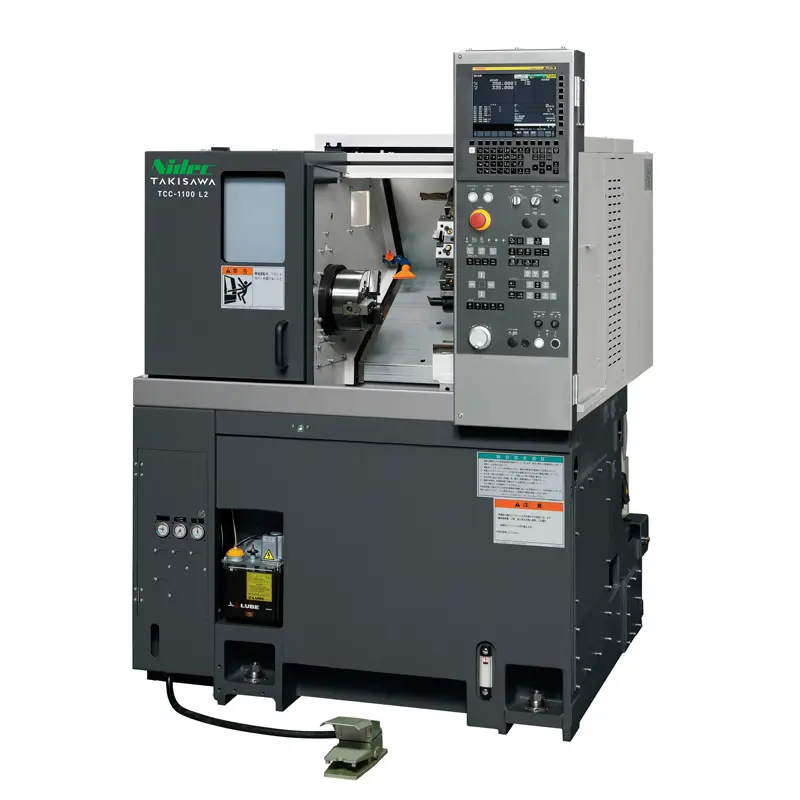

Takisawa TCC-1100
| Chuck Size | inch | 6 | |
| Type of Turret | 8-Station Turret (Direct-Mount Type) | 12-Station Turret (Direct-Mount Type) | |
| Max. Turning Diameter | mm | φ220 | φ170 |
| Max. Turning Length | mm | 171 | |
| Bar Capacity*1 | mm | φ42 | |
| Spindle Speed | min-1 | 4000 [OP. 5000, 6000] | |
| Rapid Traverse Rate | m/min | X : 24 / Z : 30 | |
| Spindle Motor（15,30 min/continuous） | kW | 5.5/3.7 [OP. 7.5/5.5] | |
| Machine Height | mm | 1700 | |
| Required Floor Space | mm | 1200×1370 | |
| Machine Weight | kg | 1860 |
