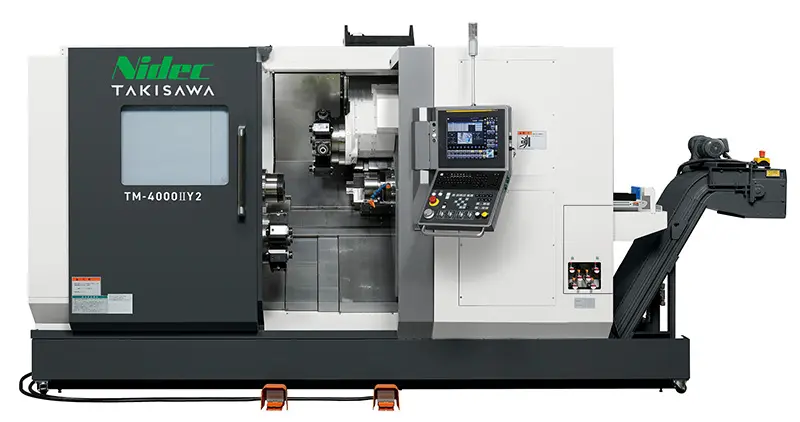

Takisawa T-4000Y2
| Chuck Size | inch | 8 |
| Type of Turret | 12-Station Turret (T12) | |
| Max. Turning Diameter | mm | φ215 |
| Max. Turning Length | mm | 800 |
| Bar Capacity *1 | mm | φ82 |
| Left Spindle Speed | min-1 | 4200 |
| Right Spindle Speed | min-1 | 5000 |
| Rotary Tool Speed | min-1 | 6000 |
| Rapid Traverse Rate (Upper Turret) | m/min | X1 : 22 / Y1 : 12 / Z1 : 30 |
| Rapid Traverse Rate (Lower Turret) | m/min | X2 : 20 / Y2 : 12 / Z2 : 30 |
| Left Spindle Motor (S3 25%/continuous) | kW | 18.5/15 |
| Right Spindle Motor (S3 25%/continuous) | kW | 15/11 |
| Rotary Tool Motor (S3 25%/continuous) | kW | 7.5/3.7 |
| Machine Height | mm | 2444 |
| Required Floor Space | mm | 4741×2675 *2 |
| Machine Weight | kg | 9880 |
