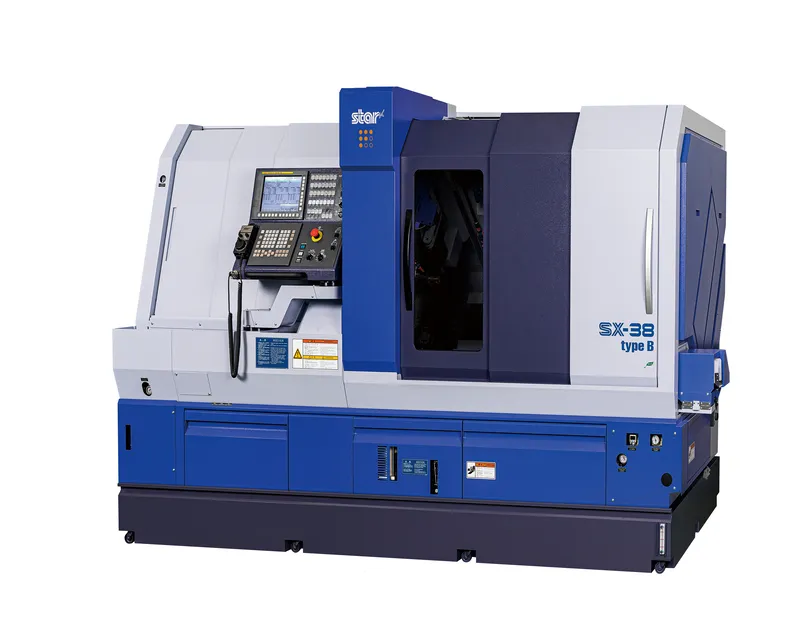

The Star SX-38 Type A/B CNC Swiss-Type Automatic Lathe combines 12-axis capability and rigid slant-bed construction to maximize productivity when machining challenging materials. Its large-diameter machining capacity and extensive tooling options, supported by high-powered motors, enable heavy material removal and flexible production. Advanced B-axis machining supports versatile operations, while gang-type and turret-type tool posts accommodate complex part requirements. Ideal for medical, automotive, aerospace, and precision manufacturing, the SX-38 delivers the accuracy, versatility, and productivity required for demanding applications.
Control | Fanuc 31i-B5 |
Main Spindle | 7,000 RPM |
Main Spindle Power | 11.0 kW / 7.5 kW (cont.) |
Power Driven Tools for Main | 6,000 RPM Gang 3.0 kW / 2.2 kW Turret 4.0 kW / 2.7 kW |
Sub Spindle | 7,000 RPM 11.0 kW / 7.5 kW (cont.) |
Power Driven Tool for Sub | 5,000 RPM 1.8 kW / 1.2 kW (cont.) |
Max. machining diameter | GB: Ø 38 mm (1.5") NON-GB: Ø 42 mm (1.625") |
Axes (Rapid Feed Rate) | X1, X2, X3, Y1, Z1, Z2, Z3 (30 m/min) Y2 (24 m/min) | Y3 (15 m/min) B1 (27,000 deg/min) C1, C2 (198,000 deg/min) |
Stroke | GB: 320 mm (12.6") NON-GB: 95 mm (3.75") |
