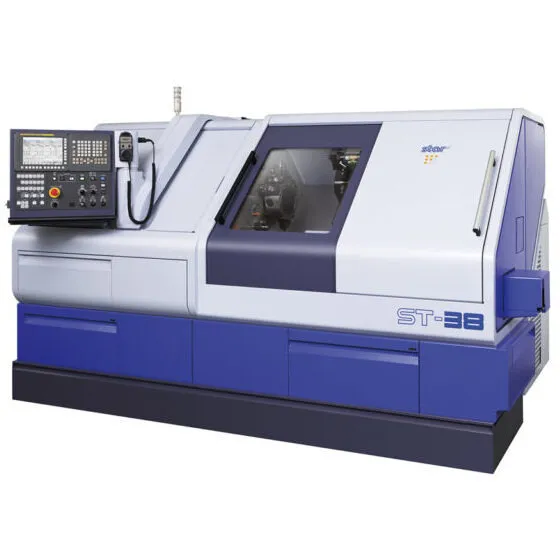

The Star ST-38 CNC Turning Center features a triple-turret design ideal for complex machining of large-diameter components. Its opposed twin-turret configuration enables simultaneous machining to reduce cycle times, while three multi-station turrets provide flexible tooling for efficient production. Front and rear deep-hole drilling capabilities expand its versatility for demanding component requirements. Equipped with Star’s Motion Control System, the ST-38 delivers enhanced machining accuracy and ease of operation. Ideal for medical, automotive, and aviation manufacturing, it provides the precision and productivity needed for complex, high-quality parts.
Control | Fanuc 31i-B5 |
Main Spindle | 7,000 RPM |
Main Spindle Power | 11.0 kW / 7.5 kW (cont.) |
Power Driven Tools for Main | 5,750 RPM 4.0 kW / 2.7 kW (cont.) |
Sub Spindle | 7,000 RPM 11.0 kW / 7.5 kW (cont.) |
Power Driven Tool for Sub | 5,750 RPM 4.0 kW / 2.7 kW (cont.) |
Max. machining diameter | Ø 38 mm (1.5") |
Axes (Rapid Feed Rate) | X1, X2, X3, Z1, Z2, Z3 (30 m/min) Y1, Y2, Y3 (15 min/min) YA2 (4 m/min) C1, C2 (198,000 deg/min) |
Stroke | GB: 350 mm (13.75") |
