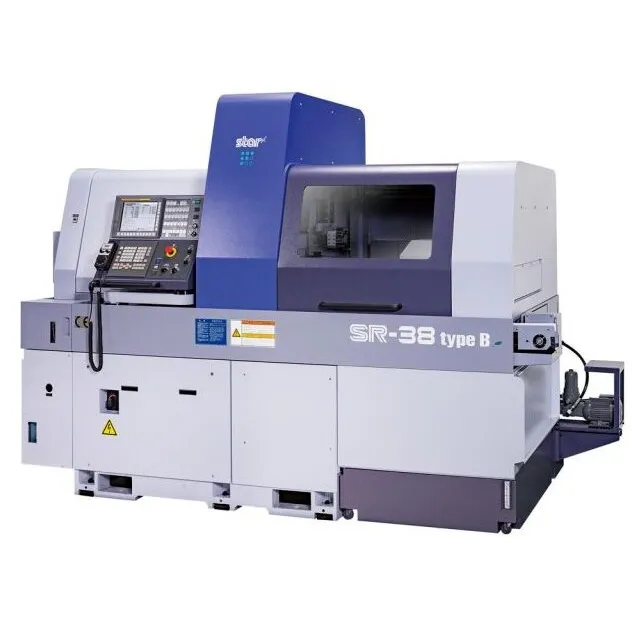

The Star SR-38 Type B CNC Swiss-Type Automatic Lathe combines rigid construction, advanced spindle technology, and flexible tooling for precise, complex machining. Its built-in main and sub-spindles support heavy material removal, two-tool turning, and roughing and finishing operations. An 8-spindle back-working unit enables complex parts to be completed in one operation, while B-axis capability expands machining flexibility. Star's proprietary Motion Control System reduces idle time, and energy-efficient operation supports sustainable production. Ideal for aerospace, automotive, medical, and precision manufacturing, the SR-38 Type B delivers reliable performance for demanding, quality-critical applications.
Control | Fanuc 31i-B5 |
Main Spindle | 7,000 RPM
|
Main Spindle Power | 11.0 kW / 7.5 kW (cont.) |
Power Driven Tools for Main | 6,000 RPM 3.0 kW / 2.2 kW (cont.) |
Sub Spindle | 7,000 RPM 5.5 kW / 3.7 kW (cont.) |
Power Driven Tool for Sub | 6,000 RPM 1.2 kW / 1.0 kW (cont.) |
Max. machining diameter | GB: Ø 38mm (1.5") Non-GB: Ø 42mm (1.625") |
Axes (Rapid Feed Rate) | X1, Y1, Z1, X2, Z2 (36 m/min) Y2, X3 (24 m/min) B1 (27,000 deg/min) C1, C2 (198,000 deg/min) |
Stroke | GB: 320 mm (12.6") NON-GB: 95 mm (3.75") |
*Number of Tools | 5 Front + 2 Rear (16mm) |
