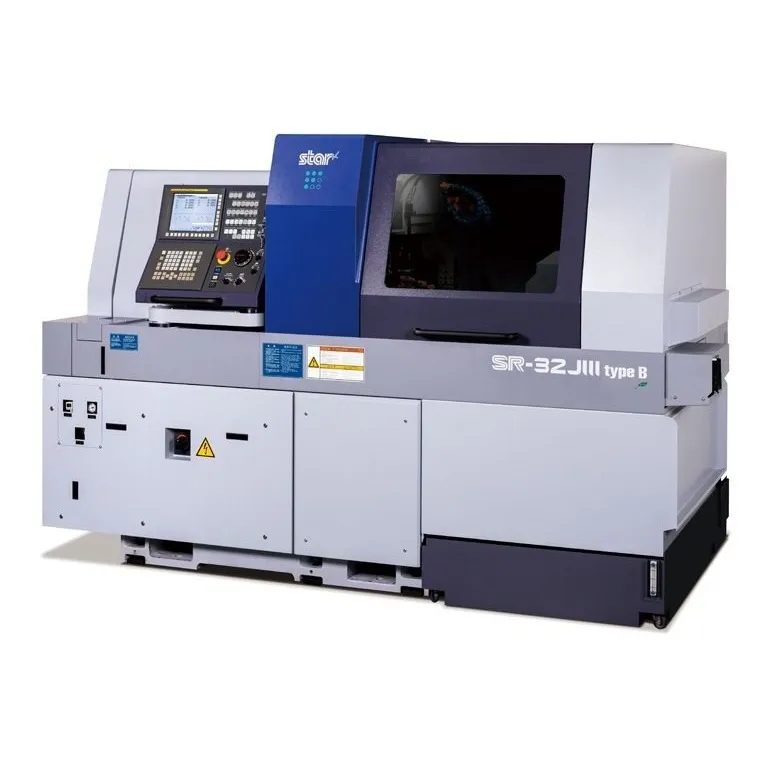

The Star SR-32JIII Type B CNC Swiss-Type Automatic Lathe combines a modular design with a slanted guideway to deliver enhanced rigidity, improved accuracy, and stable production. Its 8-station back-working unit with Y-axis control supports flexible overlapping operations and complex part machining. A robust machine structure helps maintain consistent precision during extended production runs. Switchable guide-bush and non-guide-bush operation further expands machining versatility to suit different production requirements. Ideal for automotive, medical, electronics, and precision component manufacturing, the SR-32JIII Type B delivers reliable performance and flexible machining capabilities.
Control | Fanuc 32i-B |
Main Spindle | 8,000 RPM |
Main Spindle Power | 11.0 kW / 7.5 kW (cont.) |
Power Driven Tools for Main | 8,000 RPM 3.0 kW / 2.2 kW (cont.) |
Sub Spindle | 8,000 RPM 5.5 kW / 3.7 kW (cont.) |
Power Driven Tool for Sub | 8,000 RPM 1.2 kW / 1.0 kW (cont.) |
Max. machining diameter | Ø 32mm (1.25") |
Axes (Rapid Feed Rate) | X1, Y1, Z1, X2, Z2 (35 m/min) Y2 (24 m/min) *type B only C1, C2 (198,000 deg/min) |
Stroke | GB: 320 mm (12.6") NON-GB: 80 mm (3.150") |
*Number of Tools | 6 tools (16mm) |
