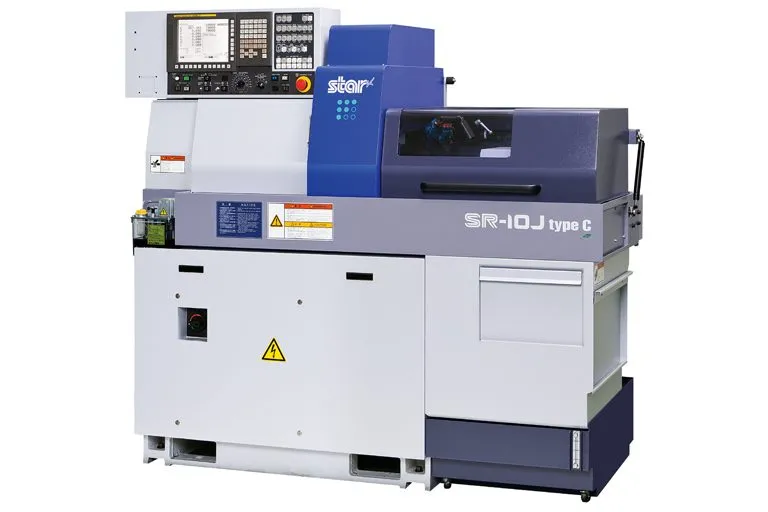

The Star SR-10J CNC Swiss-Type Automatic Lathe delivers high performance, precision, and enhanced operability for small-diameter part machining. C-axis control with clamping on both the main and sub-spindles enhances secondary machining capabilities, while high-speed spindle operation supports efficient production. Its dynamic, compact design promotes accurate machining of small components, and a 3-spindle drilling unit expands secondary machining flexibility. A standard manual pulse generator simplifies machine setup and installation. Ideal for medical, electronics, automotive, and precision component manufacturing, the SR-10J provides reliable performance for demanding production applications.
Control | Fanuc 32i-B |
Main Spindle | 15,000 RPM
|
Main Spindle Power | 3.7 kW / 2.2 kW (cont.) |
Power Driven Tools for Main | 10,000 RPM 0.5 kW (cont.) |
Sub Spindle | 10,000 RPM 1.1 kW / 0.55 kW (cont.) |
Power Driven Tool for Sub | 8,000 RPM 0.5 kW |
Max. machining diameter | Ø 10 mm (0.4") |
Axes (Rapid Feed Rate) | X1, Y1, Z1, X2, Z2 (35 m/min) C1, C2 (198,000 deg/min) |
Stroke | 135 mm (5.3") |
Number of Tools | 6 tools (8mm) |
