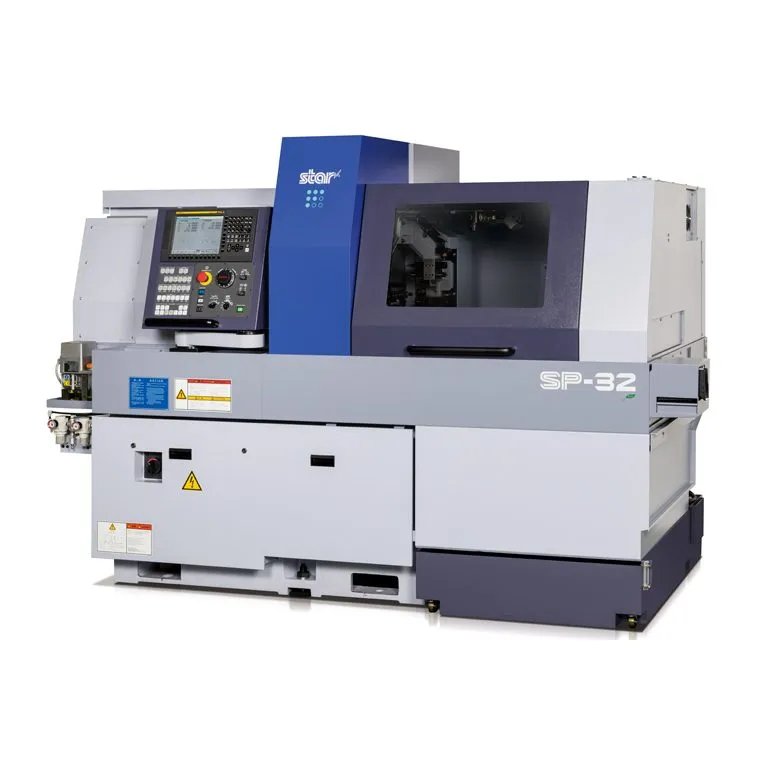

The Star SP-32 CNC Swiss-Type Automatic Lathe offers a versatile, cost-effective solution for machining larger-diameter components, bridging the gap between the SB and SR series. Its compact footprint and modular design feature a dedicated sleeve holder and flexible tooling configurations to support a wide range of machining applications. Mill/turn capabilities and numerous tool positions enable complex parts to be produced efficiently, while guide-bush and non-guide-bush conversion provides flexibility for different materials and production requirements. Ideal for automotive, medical, electronics, and precision manufacturing, the SP-32 delivers reliable performance and versatility for demanding small-part production.
Control | Fanuc 0i-TF PLUS |
Main Spindle | 7,000 RPM |
Main Spindle Power | 7.5 kW / 5.5 kW (cont.) |
Power Driven Tools for Main | 5,000 RPM 2.0 kW (cont.) |
Sub Spindle | 7,000 RPM 3.7 kW / 2.2 kW (cont.) |
Power Driven Tool for Sub | 6,000 RPM 0.75 kW (cont.) |
Max. machining diameter | Ø 32 mm (1.25") |
Axes (Rapid Feed Rate) | X1, Y1, Z1, X2, Z2 (35 m/min) C1, C2 (198,000 deg/min) |
Stroke | GB: 310 mm (12.2") NON-GB: 80 mm (3.15") |
Number of Tools | 6 tools (16mm) |
