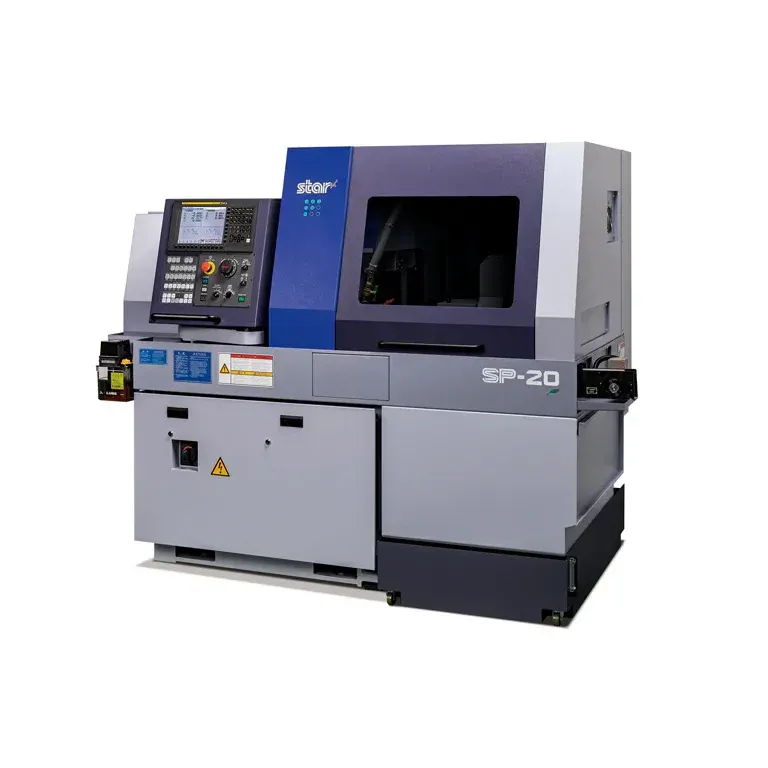

The Star SP-20 CNC Swiss-Type Automatic Lathe combines a compact footprint with versatile machining capabilities, making it an efficient and cost-effective solution for small-part production. Its gate-shaped tool post surrounds the guide bush and accommodates eight turning tools, while a five-position sleeve holder and seven-spindle powered cross-drilling unit support a wide range of machining operations. Five modular cartridge positions allow specialized attachments for cross drilling, front drilling, slotting, thread whirling, and polygon machining, providing flexibility for complex component manufacturing. Ideal for automotive, medical, electronics, and precision engineering applications, the SP-20 delivers reliable performance and versatility in a space-efficient design.
Control | Fanuc 0i-TF PLUS |
Main Spindle | 10,000 RPM |
Main Spindle Power | 3.7 kW / 2.2 kW (cont.) |
Power Driven Tools for Main | 8,000 RPM 1.4 kW (cont.) |
Sub Spindle | 10,000 RPM 2.2 kW / 1.5 kW (cont.) |
Power Driven Tool for Sub | 8,000 RPM 0.75 kW (cont.) |
Max. machining diameter | Ø 23 mm (0.9") |
Axes (Rapid Feed Rate) | X1, Y1, Z1, X2, Z2 (35 m/min) C1, C2 (198,000 deg/min) |
Stroke | GB: 205 mm (8") NON-GB: 50 mm (2") |
Number of Tools | 8 tools (12mm) |
