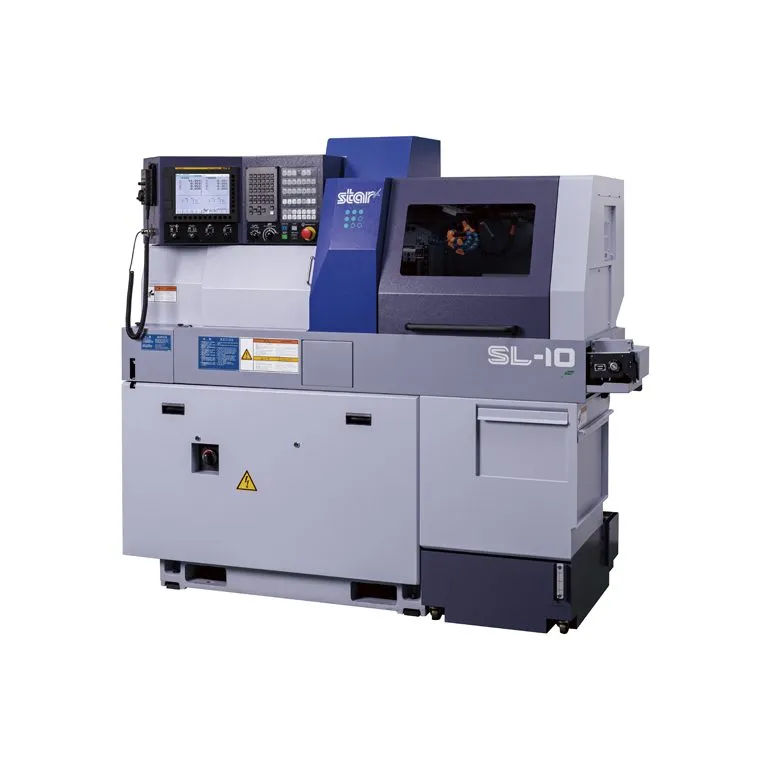

The Star SL-10 CNC Swiss-Type Automatic Lathe combines advanced machining technology with a compact design optimized for small-diameter component production. Its versatile 5-spindle cartridge-type cross-drilling unit and 6-spindle backworking unit with Y-axis control support complex multi-operation machining in a single setup. A high-performance main spindle and power-driven tooling deliver precise, efficient processing, while flexible tooling configurations expand manufacturing capabilities. Ideal for medical, automotive, electronics, and precision manufacturing, the SL-10 provides a space-efficient solution for producing intricate, high-quality components.
Control | Fanuc 32i-B PLUS |
Main Spindle | 15,000 RPM |
Main Spindle Power | 5.5 kW / 3.7 kW (cont.) |
Power Driven Tools for Main | 12,000 RPM 1.2 kW / 1.0 kW (cont.) |
Sub Spindle | 12,000 RPM 1.1 kW / 0.55 kW (cont.) |
Power Driven Tool for Sub | 12,000 RPM 1.2 kW / 1.0 kW (cont.) |
Max. machining diameter | Ø 10 mm (0.4") |
Axes (Rapid Feed Rate) | X1, Y1, Z1, X2, Z2 (35 m/min) Y2 (15 m/min) C1, C2 (198,000 deg/min) |
Stroke | 135 mm (5.3") |
Number of Tools | 6 tools (8mm) |
