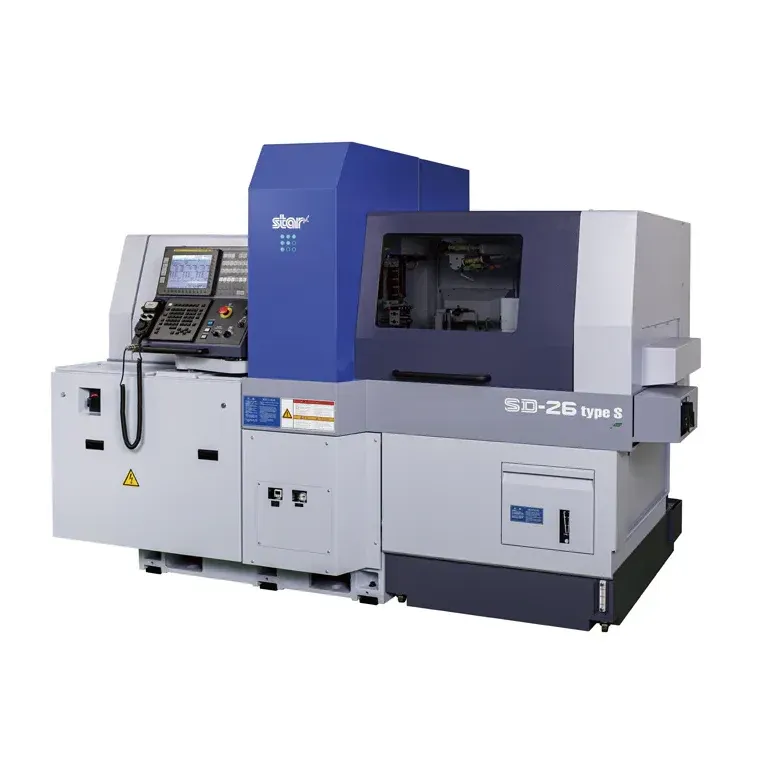

The Star SD-26 CNC Swiss-Type Automatic Lathe is designed for complex machining of small-diameter components, combining high rigidity, precision, and versatile tooling. Its dual programmable B-axis units enable advanced multi-axis machining, with flexible tooling options for intricate features and specialized operations, including thread whirling. A redesigned machine structure improves access to the guide bush and tool post, simplifying setup and operation. Batch NC program input and output, along with on-screen command help, further enhance usability. Ideal for aerospace, automotive, medical, and precision manufacturing, the SD-26 delivers flexible, accurate machining for demanding production requirements.
Control | Fanuc 32i-B PLUS (type E) Fanuc 31i-B5 PLUS (type S) |
Main Spindle | 10,000 RPM |
Main Spindle Power | 7.5 kW / 5.5 kW (cont.) |
Power Driven Tools for Main | 8,000 RPM 3.0 kW / 2.2 kW (cont.) |
Sub Spindle | 10,000 RPM 5.5 kW / 3.7 kW (cont.) |
Power Driven Tool for Sub | 6,000 RPM 1.2 kW / 1.0 kW (cont.) |
Max. machining diameter | GB: Ø 26 mm (1") NON-GB: Ø 32mm (1.25") |
Axes (Rapid Feed Rate) | X1, Y1, Z1, X2, Y2, Z2 (36 m/min) B1 (24,270 deg/min) B2 (24,270 deg/min) *type S only C1, C2 (198,000 deg/min) |
Stroke | GB: 260 mm (10.25") NON-GB: 65 mm (2.5") |
