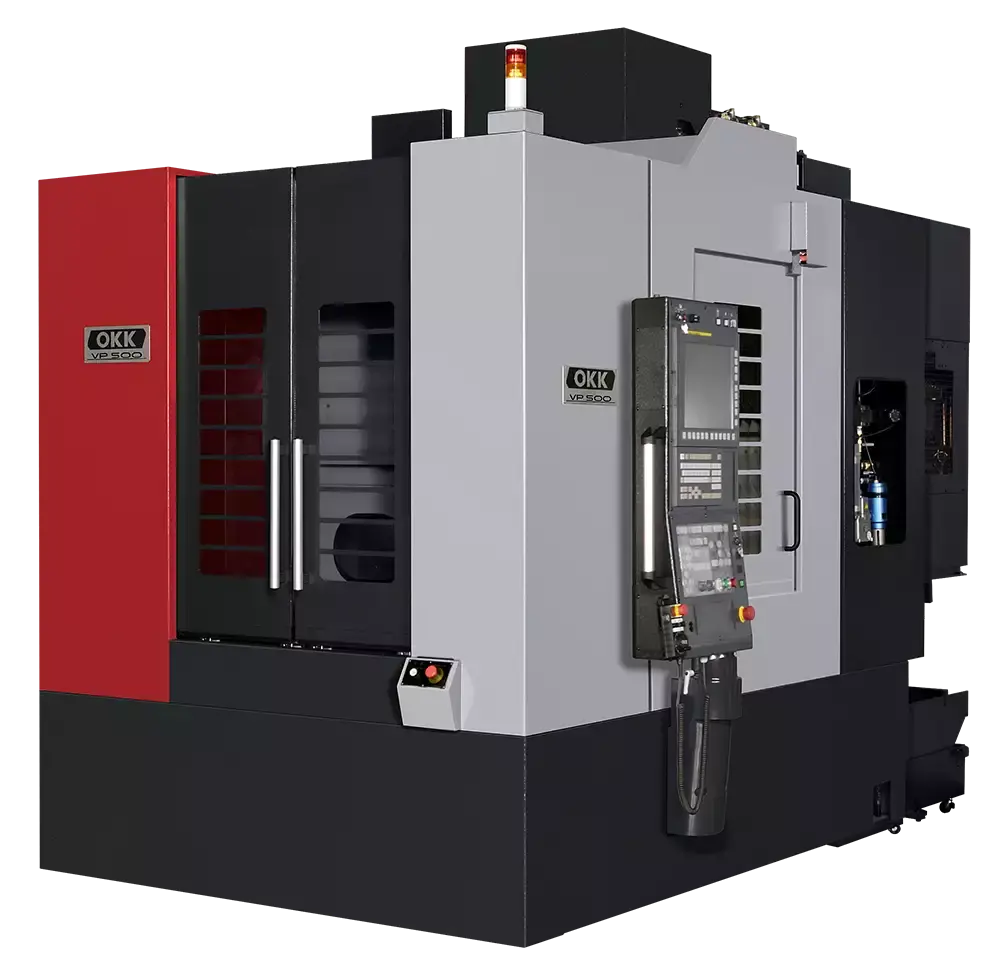

OKK VP500 2APC

Features And Benefits

• Direct turn 2 APC standard
• Four port rotary union each pallet
• Coolant through spindle preparation
• Highly rigid linear roller guide
• Double-anchoring type ball screws
• Coil-type chip conveyor
• Excellent Chip Disposal, accessibility with compact-sized machine
• Space saving design for economical use of floor space

Technical Data

Travel

• X-Axis Travel - 23.6" (600mm)
• Y-Axis Travel - 20.1" (510mm)
• Z-Axis Travel - 18.1" (460mm)
• Table Top to Spindle Nose - 5.9" - 24.0" (150mm - 610mm)

Pallet

• Pallet Surface Area - 23.6" x 19.7" (600mm x 500mm)
• Pallet Load Capacity - 881 lbs (400 kg)

Feed Rate

• Rapid Traverse Rate X/Y - 1890 in/min (48 m/min)
• Rapid Traverse Rate Z - 1417 in/min (36 m/min)
• Cutting Feed (X/Y/Z) - 1417 in/min (36 m/min)

Spindle

• Spindle Power - 50/25 HP
• Spindle Speed - 12,000 rpm
• Spindle Taper - CAT40

Tools

• Standard Number of Tools - 20 (OP: 30, 40, 60, 80, 120)
• Maximum Tool Weight - 15.4 lbs (7 kg)
• Maximum Tool Length - 11.8" (300 mm)
• Maximum Tool Diameter - ø 3.2" (82 mm) / ø 4.9" (125 mm) without adjacent tool
• Tool Changing Time (Tool to Tool) - 1.2 sec

General

• Machine Weight - 22,046 lbs (10,000 kg)
• Machine Control - FANUC F31i-B
