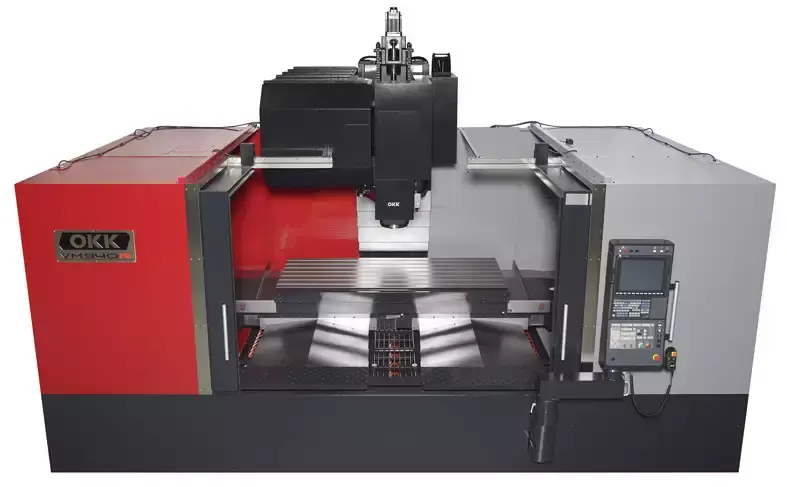

OKK VM940R

Features And Benefits

• Expanded working area
• Improved accessibility
• Increased main body rigidity
• Core chilled ball screws
• Double anchored support system
• Space saving design for economical use of floor space
• Coil-type chip conveyor

Technical Data

Travel

• X-Axis Travel - 81.1" (2060mm)
• Y-Axis Travel - 37.0" (940mm)
• Z-Axis Travel - 32.3" (820mm)
• Table Top to Spindle Nose - 7.9" - 40.2" (200mm - 1020mm)

Table

• Table Work Surface Area - 90.6" x 37.0" (2300mm x 940mm)
• Table Load Capacity - 6613.9 lbs (3000 kg)

Feed Rate

• Rapid Traverse Rate X/Y - 787 in/min (20 m/min)
• Rapid Traverse Rate Z - 630 in/min (16 m/min)
• Cutting Feed (X/Y/Z) - 787 in/min (20 m/min)

Spindle

• Spindle Power - 35/30 HP
• Spindle Speed - 8,000 rpm
• Spindle Taper - CAT50

Tools

• Standard Number of Tools - 40 (OP: 60)
• Maximum Tool Weight - 44 lbs (20 kg)
• Maximum Tool Length - 15.7" (400 mm)
• Maximum Tool Diameter - ø 4.1" (103 mm) / ø 7.9" (200mm) no tools in adjacent pots
• Tool Changing Time (Tool to Tool) - 2.9 sec (Speed is changeable for heavy-weight tools)

General

• Machine Weight - 50,706 lbs (23,000 kg)
• Machine Control - FANUC F31i-B
