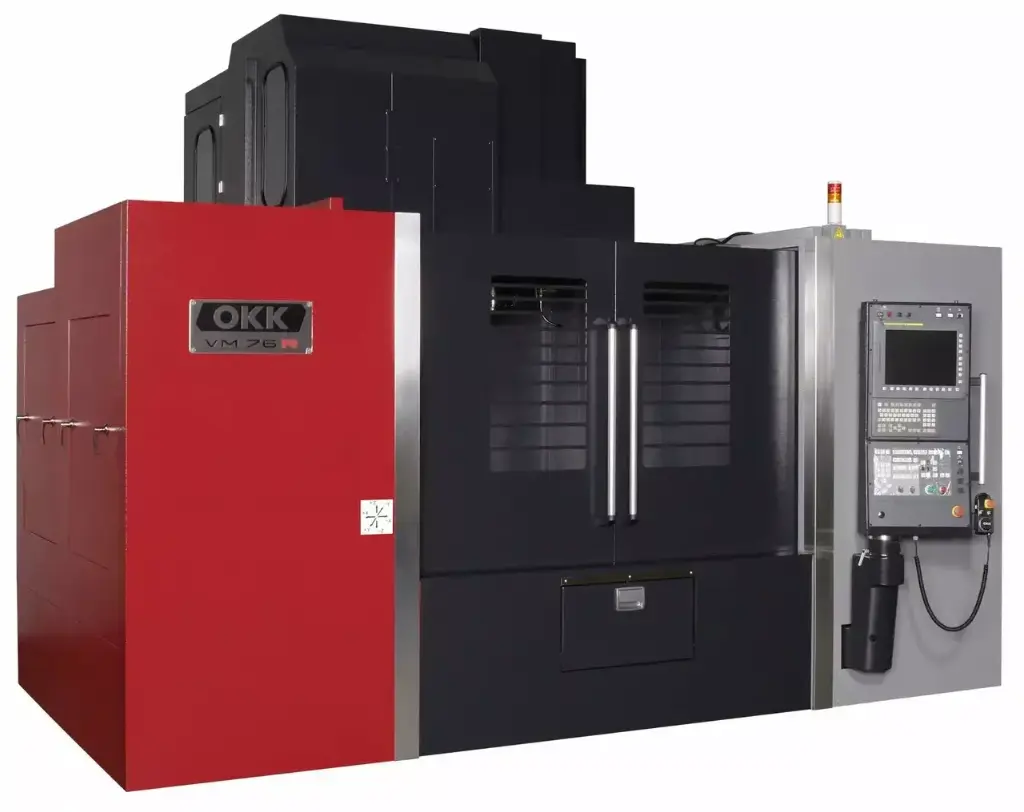

OKK VM76R

Features And Benefits

•  Expanded working area
• Improved accessibility
• Increased main body rigidity
• Core chilled ball screws
• Double anchored support system
• Space saving design for economical use of floor space
• Coil-type chip conveyor
• box ways construction

Technical Data

TRAVEL

• X axis Travel - 60.6" (1540 mm)
• Y axis Travel - 29.9" (760 mm)
• Z axis Travel - 26.0" (660 mm)
• Table Top to Spindle Nose - 5.9" - 31.9" (150 mm - 810 mm)

TABLE

• Table Work Surface Area - 61.0" x 29.9" (1550 mm x 760 mm)
• Table Load Capacity - 3307 lbs (1500 kg)

FEEDRATE

• Rapid Traverse Rate X/Y - 945 in/min (24 m/min)
• Rapid Traverse Rate Z - 787 in/min (20 m/min)
• Cutting Feed (X/Y/Z) - 787 in/min (20m/min)

SPINDLE

• Spindle Power - 25/20 HP
• Spindle Speed - 8,000 rpm
• Spindle Taper - CAT40 or CAT50

TOOLS

• Standard Number of Tools - 30
• Maximum Tool Weight - 44 lbs (20 kg)
• Maximum Tool Length - 13.8" (350 mm)
• Maximum Tool Diameter -  ø 4.06" (103 mm) / ø 7.87" (200 mm) without tool in adjacent pots
• Tool Changing Time (Tool to Tool) - 2 seconds (Speed is changeable for heavy weight tools)

GENERAL

• Machine Weight - 28,700 lbs (13,000 kg)
• Machine Control - FANUC F31i-B
