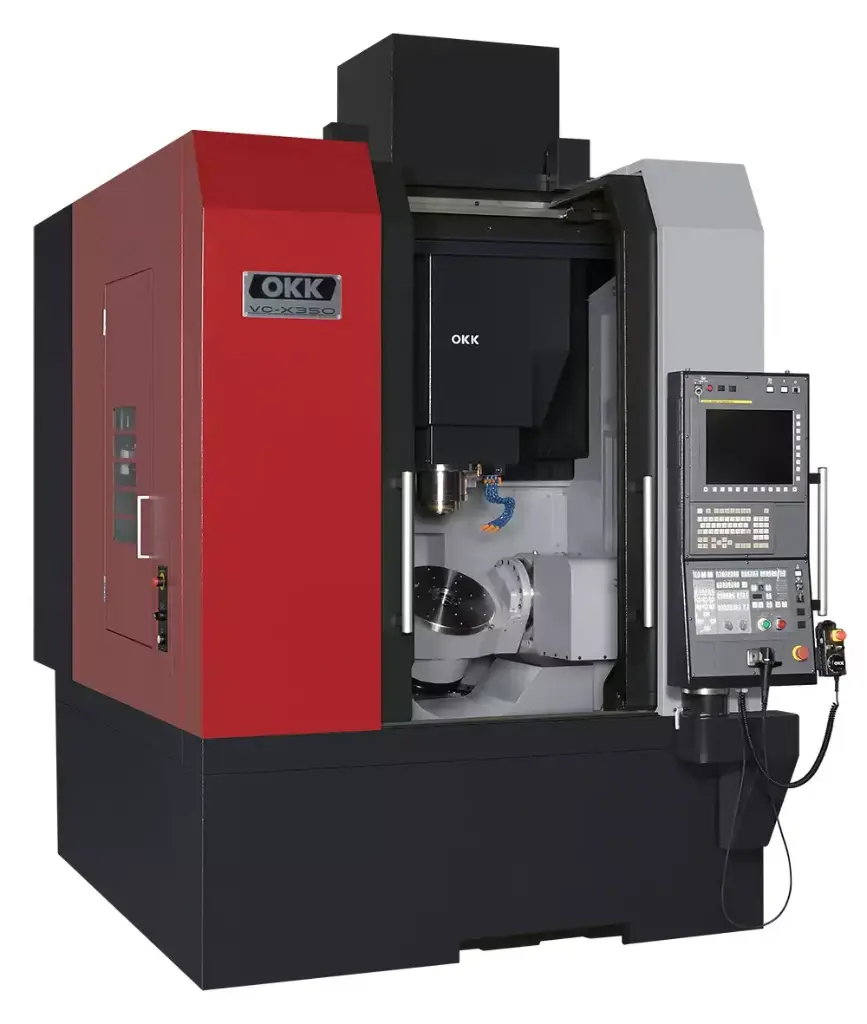

OKK VC-X350L

Features And Benefits

• Rotary table exclusive to VC-X350L
• Equipped with turning function
• Environment-friendly space saving design for economical use of floor space
• Powerfully Smooth Feed
• Core chilled ball screw and Double-anchor pre-tension system
• Two coil-type chip conveyors

Technical Data

TRAVEL

• X axis Travel - 23.6" (600 mm)
• Y axis Travel - 16.9" (430 mm)
• Z axis Travel - 18.1" (460 mm)
• A axis Travel -  ‐120° to +30°
• C axis Travel -  360°
• Table Top to Spindle Nose - 4.3 - 22.4" (110mm - 570mm)

TABLE

• Table Work Surface Area -  Ø 13.8" (350mm)
• Table Load Capacity - 220 lbs (100 kg)

FEEDRATE

• Rapid Traverse Rate X/Y - 1968 in/min (50 m/min)
• Rapid Traverse Rate Z - 1417 in/min (36 m/min)
• Cutting Feed (X/Y/Z) - 1413 in/min (36m/min)

SPINDLE

• Spindle Power - 50/30 HP
• Spindle Speed - 12,000 rpm
• Spindle Taper - CAT40

TOOLS

• Standard Number of Tools -  60 (OP: 80/120)
• Maximum Tool Weight -  15.4 lbs (7 kg)
• Maximum Tool Length -  11.8" (300 mm)
• Maximum Tool Diameter -   ø 3.2" (82 mm) / ø 4.9" (125 mm) without adjacent tool
• Tool Changing Time (Tool to Tool) -  1.3 seconds

GENERAL

• Machine Weight -  18,700 lbs (8,500 kg)
• Machine Control - FANUC F31i‐B5
