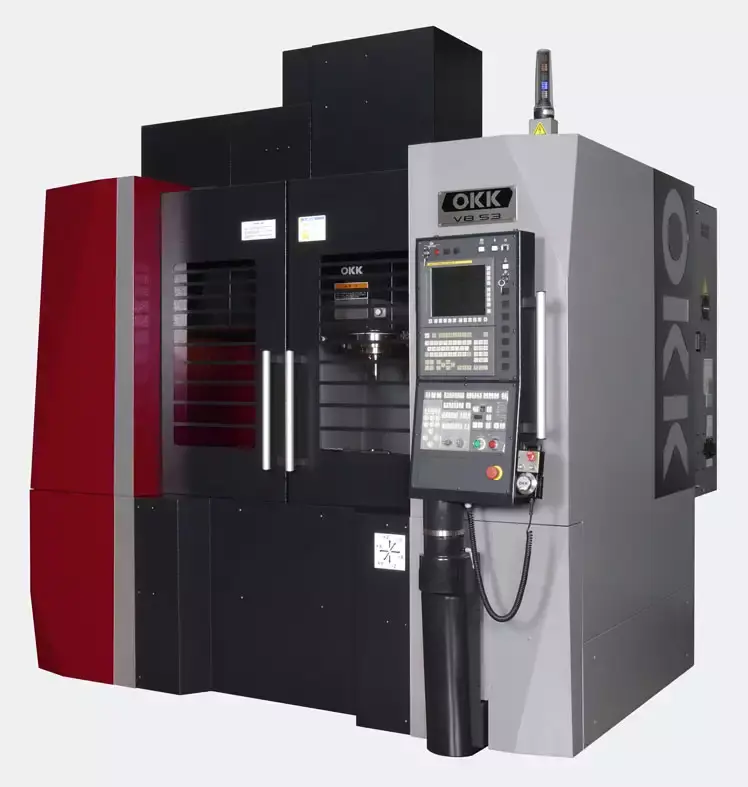

OKK VB53α

Features And Benefits

• Linear Scale feed back, Data Server and Hyper HQ as standard accessories.
• Wide size liner roller guide and high-resoluton ball screw produces high rigidity for feed axis.
•  Excellent Chip Disposal, accessibility with compact-sized machine
• high-resolution ball screw
• Coil-type chip conveyor
• Space saving design for economical use of floor space
• Thermal Sheltered and compensated

Technical Data

Travel

• X-Axis Travel - 41.3" (1050mm)
• Y-Axis Travel - 20.8" (530mm)
• Z-Axis Travel - 20.1" (510mm)
• Table Top to Spindle Nose - 5.9" - 26.0" (150mm - 660mm)

Table

• Table Work Surface Area - 49.6" x 23.6" (1260mm x 600mm)
• Table Load Capacity - 2646 lbs (1200 kg)

Feed Rate

• Rapid Traverse Rate (X/Y/Z) - 787 in/min (20 m/min)
• Cutting Feed (X/Y/Z) - 787 in/min (20 m/min)

Spindle

• Spindle Power - 29/15 HP
• Spindle Speed - 20,000 rpm
• Spindle Taper - CAT40

Tools

• Standard Number of Tools - 30
• Maximum Tool Weight - 22 lbs (10 kg)
• Maximum Tool Length - 13.8" (350 mm)
• Maximum Tool Diameter - ø 3.2" (80 mm) / ø 4.3" (110 mm) without tool in adjacent pots
• Tool Changing Time (Tool to Tool) - 2.0 sec (Speed is changeable for heavy-weight tools)

General

• Machine Weight - 16,094 lbs (7,300 kg)
• Machine Control - FANUC F31i-B
