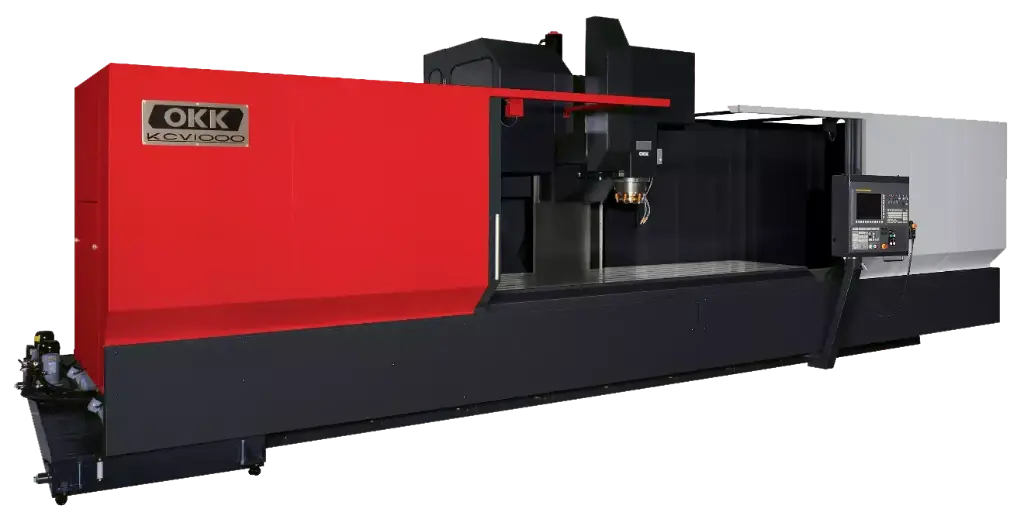

OKK KCV1000

Features And Benefits

• Space saving design for economical use of floor space
• Highly rigid machine structure produces highly accurate processing
• Thorough measures to control thermal displacement
• Operator friendly traversing column
• Highly rigid high-speed feed systems
• Core chilled ball screws
• Double anchored support system
• Coil-type chip conveyor

Technical Data

Travel

• X-Axis Travel - 137.8" (3500mm)
• Y-Axis Travel - 40.2" + 1.8" (1020mm + 45mm)
• Z-Axis Travel - 28.4" (720mm)Table Top to Spindle Nose7.9" - 36.2" (200mm - 920mm)

Table

• Table Work Surface Area - 149.6" x 40.2" (3800mm x 1020mm)
• Table Load Capacity - 8800 lbs (4000 kg)

Feed Rate

• Rapid Traverse Rate (X/Y/Z) - 787 in/min (20 m/min)
• Cutting Feed (X/Y/Z) - 393 in/min (10 m/min)

Spindle

• Spindle Power - 40/33 HP
• Spindle Speed - 12,000 rpm
• Spindle Taper - CAT50

Tools

• Standard Number of Tools - 30 (OP: 40)
• Maximum Tool Weight - 44 lbs (20 kg)
• Maximum Tool Length - 13.8" (350 mm)
• Maximum Tool Diameter - ø 3.9" (100 mm) / ø 7.9" (200 mm) without adjacent tool
• Tool Changing Time (Tool to Tool) - 2.5 sec (Speed is changeable for heavy-weight tools)

General

• Machine Weight - 61,600 lbs (28,000 kg)
• Machine Control - FANUC F31i-B
