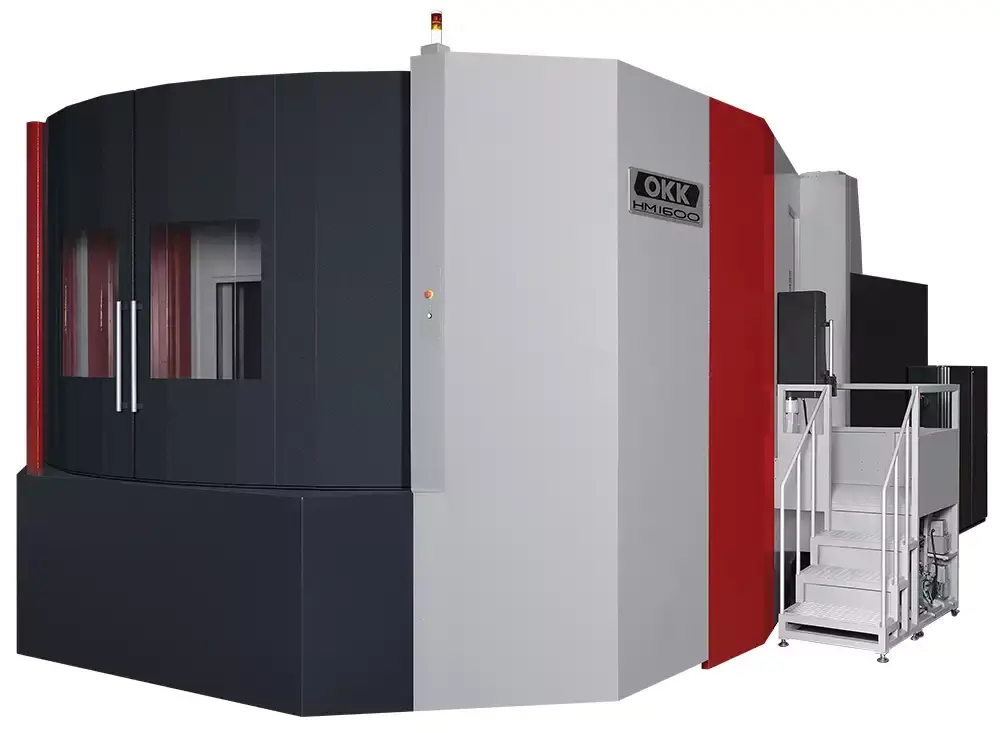

OKK HM1600

Features And Benefits

• Direct-turn APC
• Heavy load capacity linear roller guides
• Core chilled pre-tensioned and double-anchored ball screws
• High load capacity feed motors
• Space saving design for economical use of floor space

Technical Data

Travel

• X-Axis Travel - 94.5" (2400mm)
• Y-Axis Travel - 65.0" (1650mm)
• Z-Axis Travel - 68.9" (1750mm)
• Table Top to Spindle Nose - 3.9" – 68.9" (100mm - 1750mm)

Table

• Table Size - 62.99" x 49.2" (1600mm x 1250mm)
• Table Load Capacity - 17,621 lbs (8000kg)
• Max. Workpiece Size - ø 98.4" x 72.8" (ø2500mm x 1850 mm) diameter x height
• Table Change Time: Cut to Cut - 54.0 sec

Feed Rate

• Rapid Traverse Rate (X/Y/Z) - 1653 in/min (42 m/min)
• Cutting Feed (X/Y/Z) - 787 in/min (20 m/min)

Spindle

• Spindle Power - 60/50 HP Three Geared Head Torque:1,616ft-lbs
• Spindle Speed - 6,000 rpm (Option 12,000 rpm)
• Spindle Taper - CAT50

Tools

• Standard Number of Tools - 116 (OP: 176/236)
• Maximum Tool Weight - 66 lbs (30 kg)
• Maximum Tool Length - 23.6" (600 mm)
• Maximum Tool Diameter - ø 4.5" (115 mm) / ø 11.81" (300 mm) without tool in adjacent pots
• Tool Changing Time: Tool-to-Tool - 3.8 sec (Speed is changeable for heavy-weight tools)

General

• Machine Weight - 110,132 lbs (50,000 kg)
• Machine Control - FANUC F31i-B5 Plus
