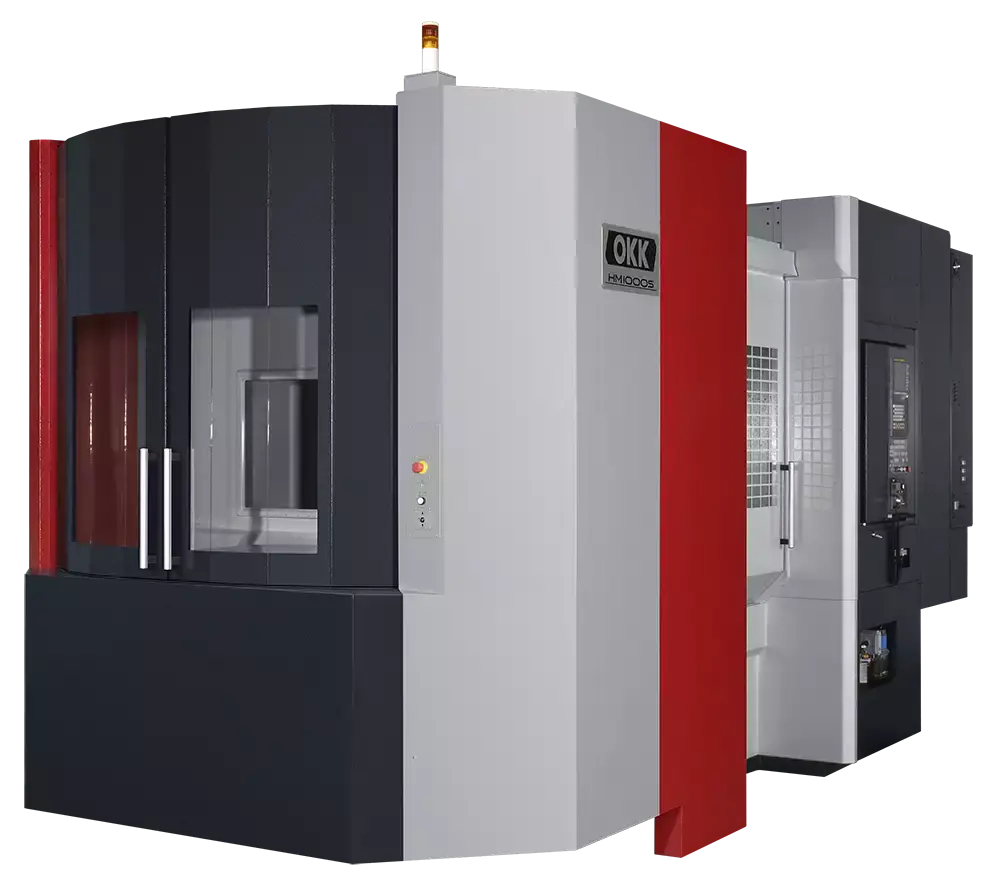

OKK HM1000S

Features And Benefits

• Direct-turn APC
• Heavy load capacity linear roller guides
• Core chilled pre-tensioned and double-anchored ball screws
• High load capacity feed motors
• Space saving design for economical use of floor space

Technical Data

Travel

• X-Axis Travel - 55.2" (1400mm)
• Y-Axis Travel - 43.3" (1100mm)
• Z-Axis Travel - 39.4" (1000mm)
• Table Top to Spindle Nose - 1.18" – 44.49" (30mm - 1130mm)

Table

• Table Size - 39.4" x 39.4" (1000mm x 1000mm)
• Table Load Capacity - 5500 lbs (2500kg)
• Max. Workpiece Size - ø 51.18" (1300mm)
• Table Change Time: Cut to Cut - 21.0 sec

Feed Rate

• Rapid Traverse Rate (X/Y/Z) - 1889 in/min (48 m/min)
• Cutting Feed (X/Y/Z) - 1575 in/min (40 m/min)

Spindle

• Spindle Power - 60/35 HP
• Spindle Speed - 12,000 rpm (OP: 8,000 rpm Three Geared Head 923ft-lbs)
• Spindle Taper - CAT50

Tools

• Standard Number of Tools - 60 (OP: 116/176/236)
• Maximum Tool Weight - 55 lbs (25 kg)
• Maximum Tool Length - 19.7" (500 mm)
• Maximum Tool Diameter - ø 4.5" (115 mm) / ø 10.6" (270 mm) without tool in adjacent pots
• Tool Changing Time: Cut to Cut - 5.8 sec (Speed is changeable for heavy-weight tools)

General

• Coolant Tank Capacity - 211 gal (800 L)
• Machine Weight - 55,000 lbs (25,000 kg)
• Machine Control - FANUC F31i-B5 Plus
