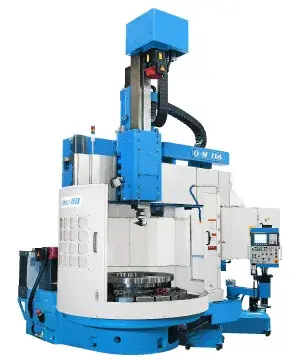

O-M LTD. Neo a-16EX

Features and Benefits

• BOXWAY Guide
• Round-Shaped Cover
• Dual Contact Tool Clamping

Technical Data

TRAVEL

•  Horizontal Travel (to right of table center) - 1510 mm (59.45")
• Horizontal Travel (to left of table center) - 100 mm (3.94")
• Vertical Travel of Ram - 1100 mm (43.31")

CAPACITY

• Table Diameter - 1600 mm (62.99")
• Maximum Turning Diameter - 2000 mm (78.74")
• Maximum Swing - 2000 mm (78.74")
• Maximum Turning Height - 1500 mm (59.06")
• Maximum Mass of Workpiece - 8000 kg (17,640 lbs)
• Maximum Torque for Turning - 20,000 Nm (14,749 lbf/ft)
• Maximum Cutting Force - 25,000 N (5620 lbf)
• Table Speed for Turning - 1-300 min-1
• Maximum Torque for Milling - 330 Nm (243 lbf/ft)
• Maximum Diameter for Drilling 80 mm (3.15")
• Max Diameter for Tapping - M42 x 4.5 mm (1.654")
• Table Speed for Indexing (C-axis) - 3 min-1

SPINDLE

• Spindle Speed - 25-25,000 min-1

FEED RATE

• X-axis Rapid Feed Rate - 15,000 mm/min (590.55 inch/min)
• Z-axis Rapid Feed Rate - 12,000 mm/min (472.44 inch/min)

Power Requirements

• Total Power Capacity - 80 kVA
