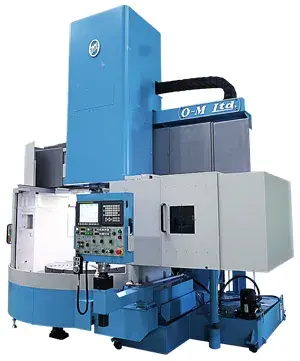

O-M LTD. Neo-10EX II

Features and Benefits

• BOXWAY Guide
• Round-Shaped Cover
• Dual Contact Tool Clamping

Technical Data

TRAVEL

•  Horizontal Travel (to right of table center) - 1135 mm (44.69")
• Horizontal Travel (to left of table center) - 475 mm (18.70")
• Vertical Travel of Ram - 800 mm (31.50")

CAPACITY

• Table Diameter - 1100 mm (43.31")
• Maximum Turning Diameter - 1250 mm (49.21")
• Maximum Swing - 1400 mm (55.12")
• Maximum Turning Height (H / L) - 800 mm (31.50") / 600 mm (23.62")
• Maximum Mass of Workpiece - 3000 kg (6615 lbs)
• Maximum Torque for Turning - 13,000 Nm (9,587 lbf/ft)
• Maximum Cutting Force - 25,000 N (5620 lbf)
• Table Speed for Turning - 1-420 min-1

FEED RATE

• X-axis Rapid Feed Rate - 15,000 mm/min (590.55 inch/min)
• Z-axis Rapid Feed Rate - 12,000 mm/min (472.44 inch/min)

Power Requirements

• Total Power Capacity - 60 kVA
