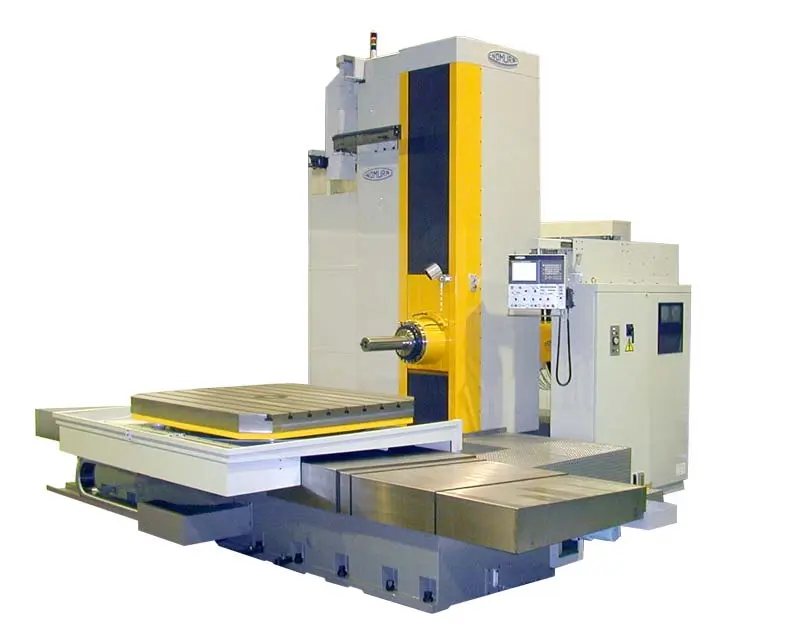

Nomura HBA-110T-R3
Features And Benefits
• 5.3" spindle diameter
• Oversized large diameter ball screws and feed motors
• Nitrided hardened, ground and hand-lapped spindle (HRC 67+)
• Extra-large spindle bearings with oil-mist cooling device
• Full CNC controlled B axis rotary table with double warm
• Three ranges of geared-headstock with 60HP spindle motor (2,930 Ft. Lbs)
• The bed, the saddle, the column and the table are of high grade FC 300 iron
• All the slideways are hardened and ground
• The mating surfaces are coated with a fluorine-resin and forced lubricated
Technical Data
Spindle:
Diameter: 5.31"
Speed: Up to 3,000 RPM
Taper: 7/24 Taper No. 50 (CAT 50)
Max Torque: 2,930 ft-lbs
Max Thrust: 6,609 lbs
Travel:
X-Axis (Table Cross Traverse): 118.1"
Y-Axis (Headstock Vertical Travel): 90.5"
Z-Axis (Column Longitudinal Travel): 55.1" (Optional: 95")
W-Axis (Spindle Travel): 27.5"
Table:
Size: 59" x 118.1"
Max Load: 55,116 lbs (uniformly distributed)
B-Axis Indexing: Not applicable (Plain Table)
Feed Rates:
Rapid Traverse (X, Y, Z): 393.7 in/min
Rapid Traverse (W): 236.2 in/min
Feed Rate Range: 0.004 – 196.8 in/min
Table Rotation Speed: 500 deg/min
Motor:
Spindle Drive Motor: 60 HP
Machine Dimensions:
Height: 182"
Floor Space Required: 308" x 270"
Weight: Approximately 88,200 lbs
