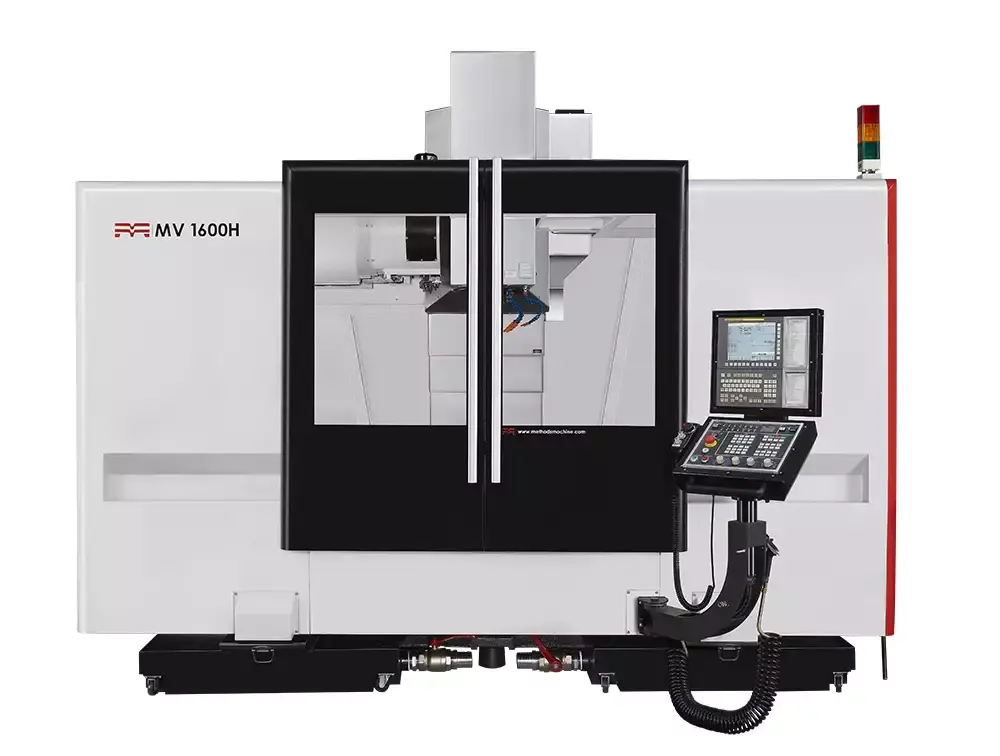

Methods MV 1600H

Features And Benefits

• Reliable FANUC 0i-MF Control with 10.4” LCD Screen
• Includes Manual Guide I, AICC II, 2ms BPT, and 200 Block Look Ahead
• 15,000 RPM Big Plus, 40 Taper Spindle with Air-Oil Lubrication, Spindle Chiller
• Powerful 30 HP (15 min.) Direct Drive Hollow Shaft Spindle Motor w/1000 psi CTS Prep
• Rigid Box-Way Construction in the Z-Axis
• Robust Roller Guideways in the X and Y-Axis Feature 1417 IPM Rapid Rate
• 40 Tool ATC
• Thermal Compensation

Technical Data

Travel

• X axis Travel - 63" (1600 mm)
• Y axis Travel - 35.4" (900 mm)
• Z axis Travel - 31.5" (800 mm)

Table

• Table Dimensions - 66.9" x 33.5" (1700 x 850 mm)
• Maximum Load - 3307 lbs (1500 kg)
• Spindle Nose to Table Surface - 3.9” ~ 35.4” (100 ~ 900 mm)

Spindle

• Spindle Speed - 15,000 rpm
• Spindle Taper - Big Plus/CAT40
• Spindle Power - 30 hp
• Spindle Torque - 111 ft/lb (150 Nm)
• Spindle Lube - Oil / Air

Feedrate

• X-Axis Rapid Traverse -1417 in/min (36 m/min)
• Y-Axis Rapid Traverse - 1417 in/min (36 m/min)
• Z-Axis Rapid Traverse - 945 in/min (24 m/min)

ATC

• Maximum Number of Tools - 40
• Tool-to-Tool Change Time - 1.5 sec
• Max Diameter - 3” (76 mm)
• Max Weight - 17.6 lbs (8 kg)
• Max Length - 11.8” (300)

Dimensions/ Weight/ Capacities

• Weight - 41888 lbs (19000 kg)
• Coolant Tank Capacity - 132.1 gal (500 L)
• Control - FANUC 0i-MF
