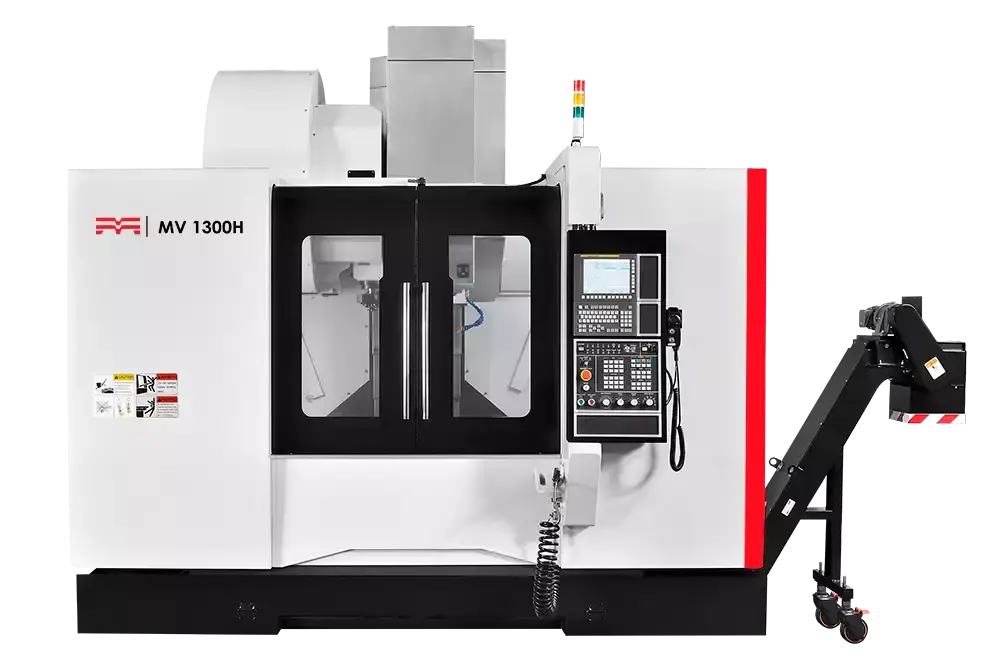

Methods MV 1300H

Features And Benefits

• Reliable FANUC 0i-MF Control with 10.4” LCD Screen
• Includes Manual Guide I, AICC II, 2ms BPT, and 200 Block Look Ahead
• 15,000 RPM Big Plus, 40 Taper Spindle with Air-Oil Lubrication, Spindle Chiller
• Powerful 30 HP (15 min.) Direct Drive Hollow Shaft Spindle Motor w/1000 psi CTS Prep
• Rigid Box-Way Construction in the Z-Axis
• Robust Roller Guideways in the X and Y-Axis Feature 1890 IPM Rapid Rate
• 32 Tool ATC
• Thermal Compensation

Technical Data

Travel

• X axis Travel - 51.1" (1300 mm)
• Y axis Travel - 24" (610 mm)
• Z axis Travel - 23.6" (600 mm)

Table

• Table Dimensions - 51.2" x 23.6" (1300 x 600 mm)
• Maximum Load - 2205 lbs (1000 kg)
• Spindle Nose to Table Surface - 4.9” ~ 28.5” (125 mm ~ 725 mm)

Spindle

• Spindle Speed - 15,000 RPM
• Spindle Taper - Big Plus/CAT-40
• Spindle Power - 30 HP
• Spindle Torque - 359 ft/lb (487 Nm)
• Spindle Lube - Oil / Air

Feedrate

• X-Axis Rapid Traverse - 1181 in/min (30 m/min)
• Y-Axis Rapid Traverse -1181 in/min (30 m/min)
• Z-Axis Rapid Traverse - 945 in/min (24 m/min)

ATC

• Maximum Number of Tools - 32
• Tool-to-Tool Change Time - 2.9 sec
• Max Diameter - 4.7” (120 mm)
• Max Weight - 33 lbs (15 kg)
• Max Length -12” (305 mm)

Dimensions/ Weight/ Capacities

• Weight - 22,000 lbs (10,000 kg)
• Coolant Tank Capacity - 119 gal (450 L)
• Control - FANUC 0i-MF
