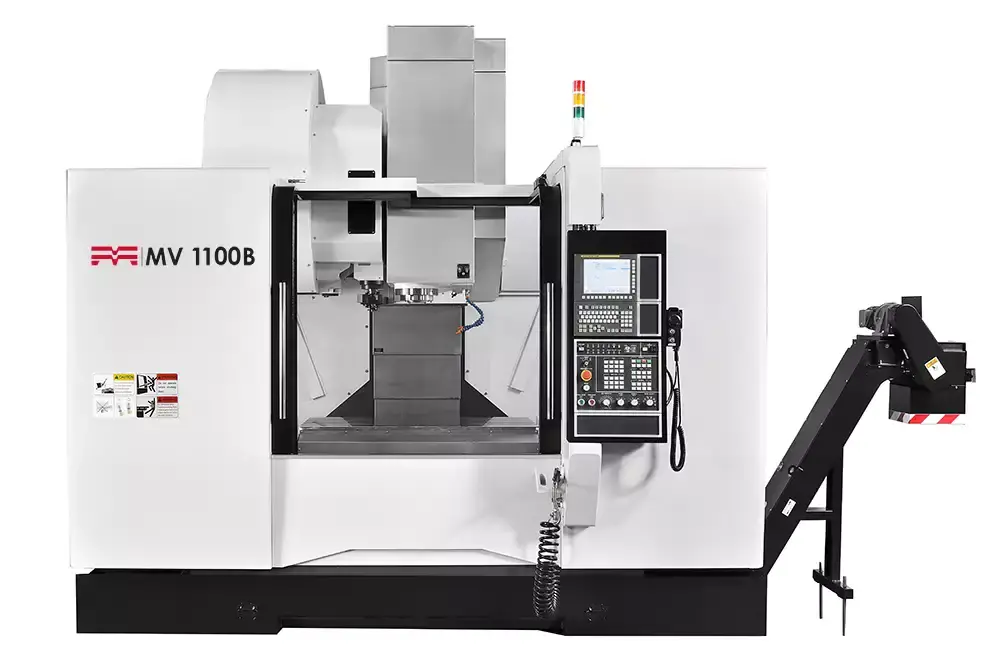

Methods MV 1100GB

Features And Benefits

• Reliable FANUC 0i-MF Control with 10.4” LCD Screen
• Includes Manual Guide I, AICC II, 2ms BPT, and 200 Block Look Ahead
• 8,000 RPM Big Plus CAT50 Taper Gear Head Spindle with Grease Lubrication, and Ceramic Bearings,
• Powerful 359ft-lbs of torque (30 min)
• Prepped for 1000psi coolant thru spindle

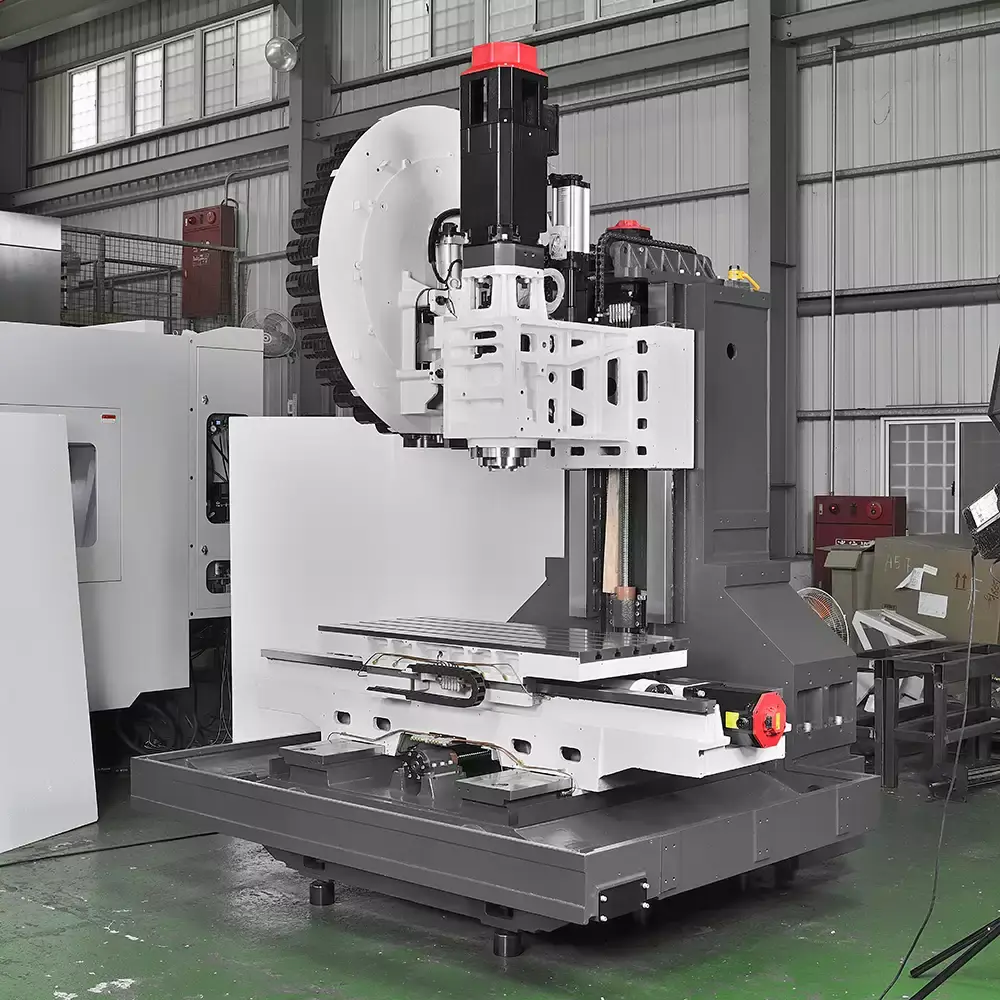

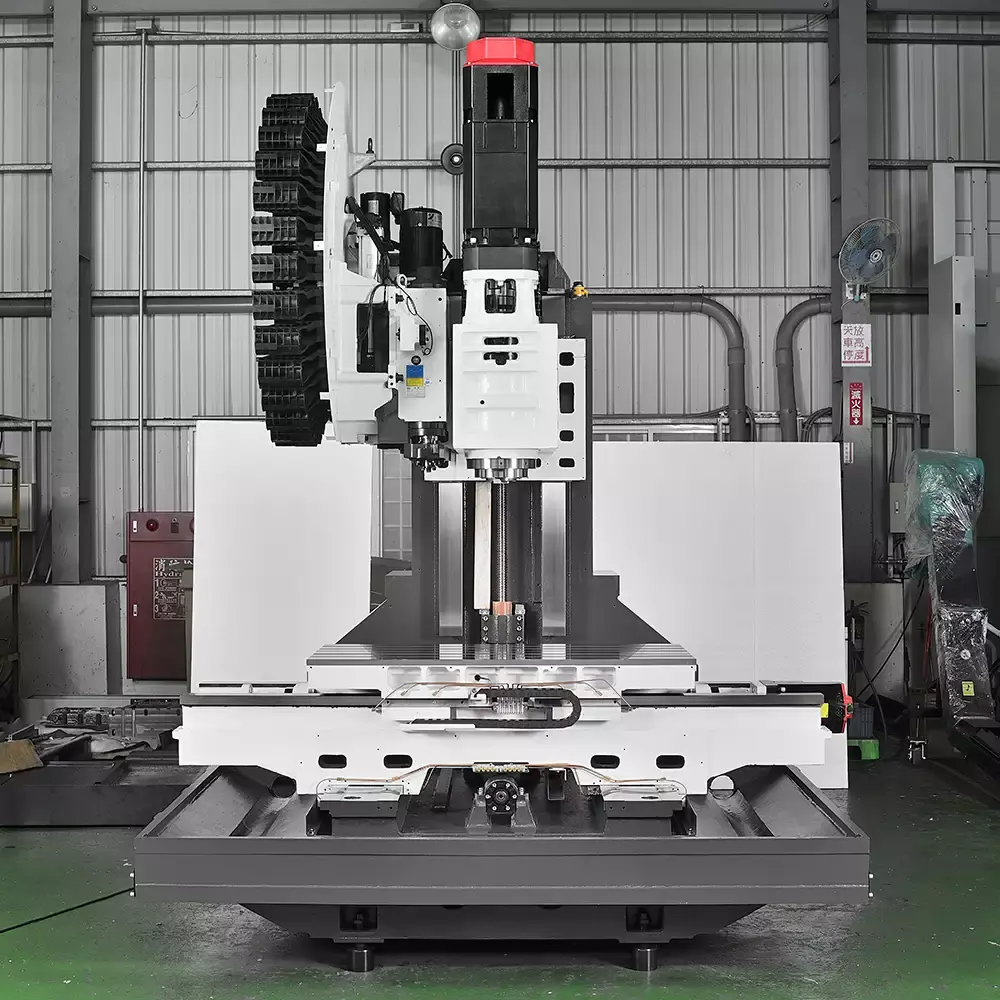

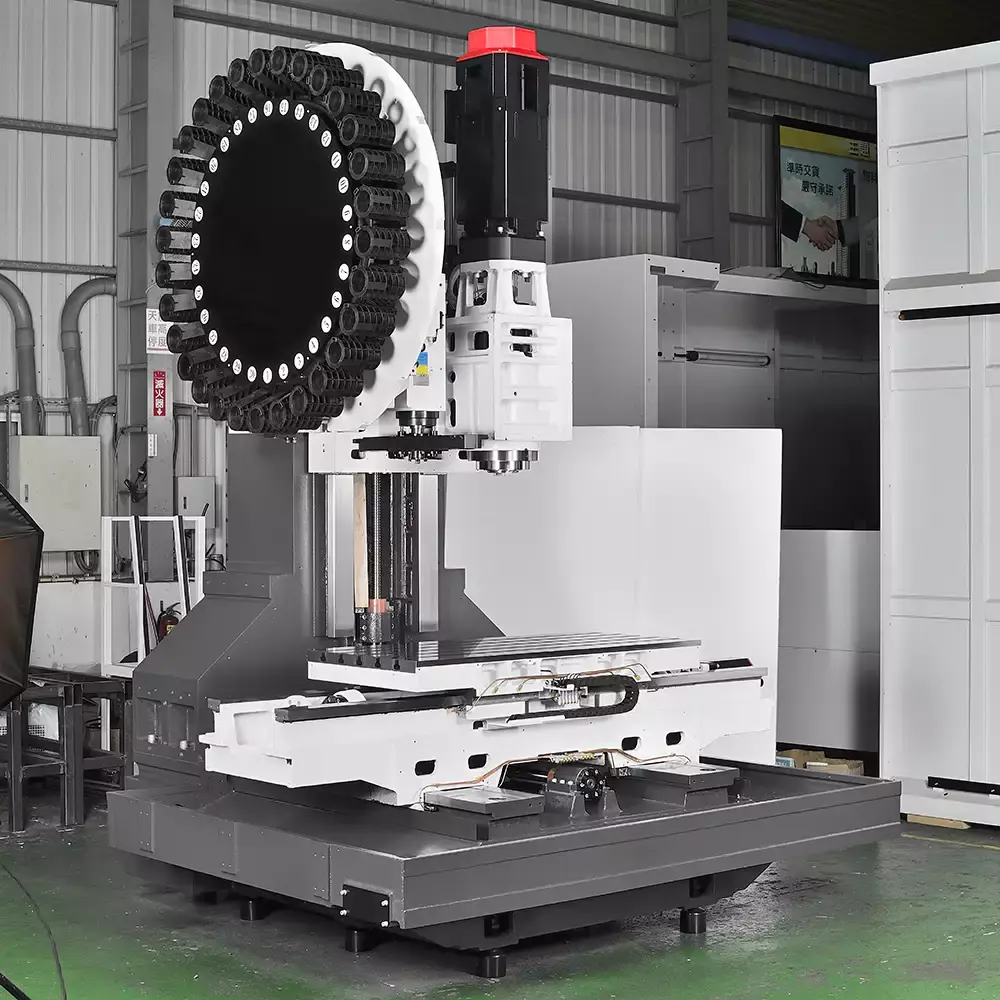

• Rigid Box-Way Construction in the X, Y, and Z Axes
• Features 1181 IPM Rapid Rate in the X & Y-Axis and 945 IPM Rapid Rate in the Z-Axis
• 30 Tool ATC
• 21,000lbs machine weight
• Thermal Compensation
• Spindle Chiller

Technical Data

Travel

• X axis Travel - 43.3" (1100 mm)
• Y axis Travel - 24" (610 mm)
• Z axis Travel - 23.6" (600 mm)

Table

• Table Dimensions - 51.2" x 23.6" (1300 x 600 mm)
• Maximum Load - 2205 lbs (1000 kg)
• Spindle Nose to Table Surface - 4.9” ~ 28.5” (125 mm ~ 725 mm)

Spindle

• Spindle Speed - 8,000 rpm
• Spindle Taper - Big Plus/CAT50
• Spindle Power - 25 HP
• Spindle Torque - 359 ft/lb (487 Nm)
• Spindle Lube - Oil / Air

Feedrate

• X-Axis Rapid Traverse - 1181 in/min (30 m/min)
• Y-Axis Rapid Traverse - 1181 in/min (30 m/min)
• Z-Axis Rapid Traverse - 945 in/min (24 m/min)

ATC

• Maximum Number of Tools - 30
• Tool-to-Tool Change Time - 2.9 sec
• Max Diameter - 4.7” (120 mm)
• Max Weight - 33 lbs (15 kg)
• Max Length -12” (305 mm)

Dimensions/ Weight/ Capacities

• Weight - 21,000 lbs (9500 kg)
• Coolant Tank Capacity - 109.9 gal (416 L)
• Control - FANUC 0i-MF
