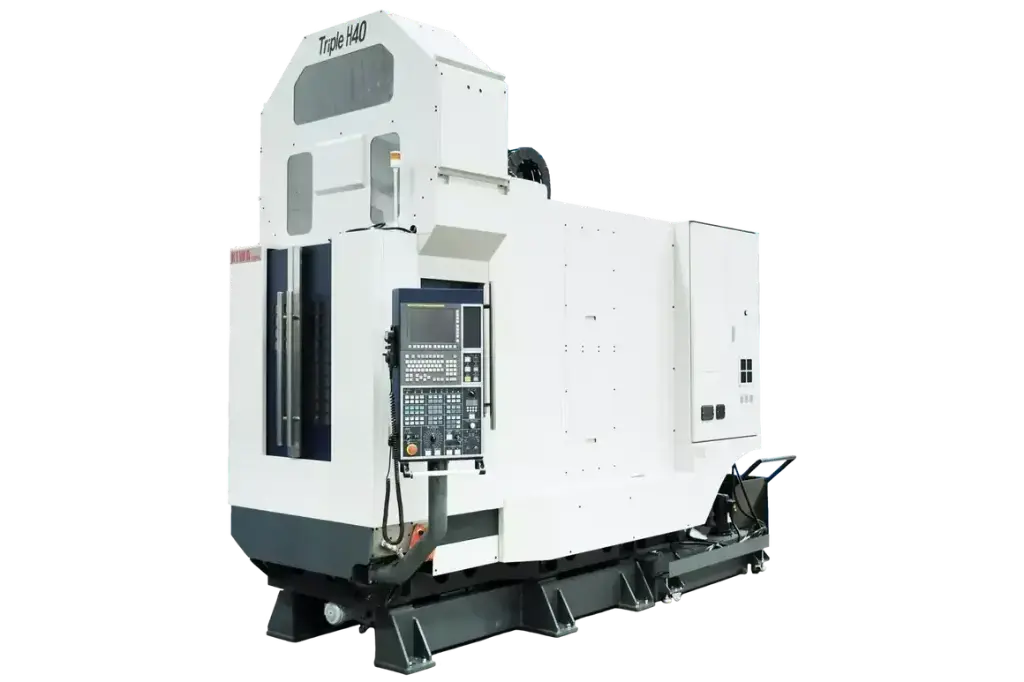

KIWA TRIPLE H40 3-axis

Features And Benefits

• (4) Simultaneously controlled axes (4+1)

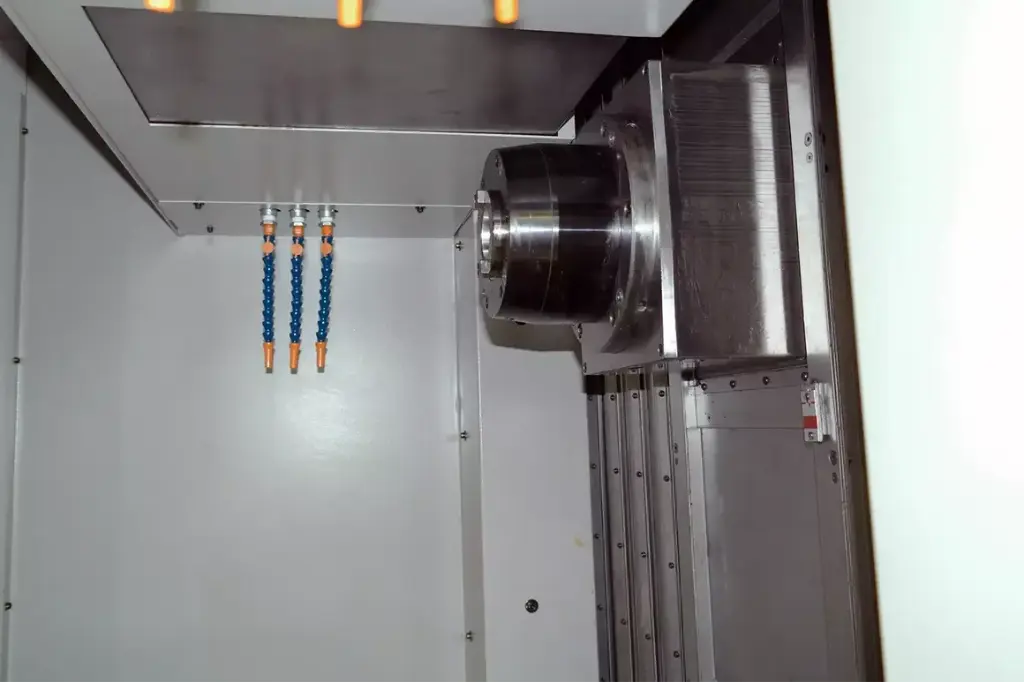

• Provision for coolant through spindle
• Overhead Coolant chip flow system
• Spindle oil cooler
• Chip Auger and Chip conveyor std
• Tool life management
• AICC1
• 1280 meter / 512 kB memory
• Helical interpolation
• 200 tool off sets
• Macro programming

Technical Data

TRAVEL

• X axis Travel -  20.1" (510 mm)
• Y axis Travel -  20.1" (510 mm)
• Z axis Travel -  15.7" (400 mm)

PALLET

• Pallet Surface to Spindle Center - 12.2" - 32.3" (310 mm - 820 mm)
• Pallet Center to Spindle Nose - 2.8" - 18.5" (70 mm - 470 mm)
• Pallet Load Capacity - 2200 lbs (1000 kg)
• Maximum Work Piece Size - 32.3" x 17.7" (820 mm x 450 mm)

FEEDRATE

• X axis Rapid Traverse - 2362" (60 m)
• Y axis Rapid Traverse - 2362" (60 m)
• Z axis Rapid Traverse - 2362" (60 m)
• Cutting Feed (X/Y/Z) - 1181" (30 m)

SPINDLE

• Spindle Power - 20 HP
• Spindle Speed - 12,000 rpm (opt)
• Spindle Taper - CAT40

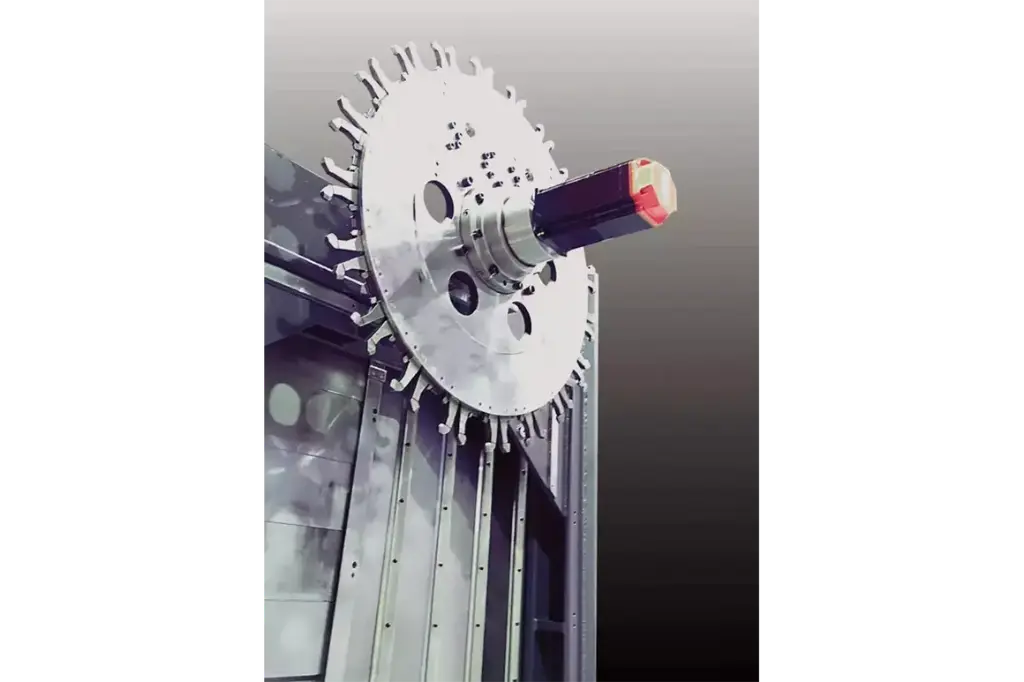

TOOLS

• Standard Number of Tools -  40 std (opt)
• Maximum Tool Weight - 17.6 lbs (8 kg)
• Maximum Tool Length - 11.8" (300 mm)
• Maximum Tool Diameter - 3.5" (90 mm)
•  Maximum Tool Diameter with No Adjacent Tool - 7.1" (180 mm)
• Tool Changing Time: Tool to Tool - 4.5 seconds

GENERAL

• Machine Weight - 12,600 lbs (5,700 kg)
• Machine Control - OiMF
• Coolant Tank Capacity - 119 gal (450 L)
