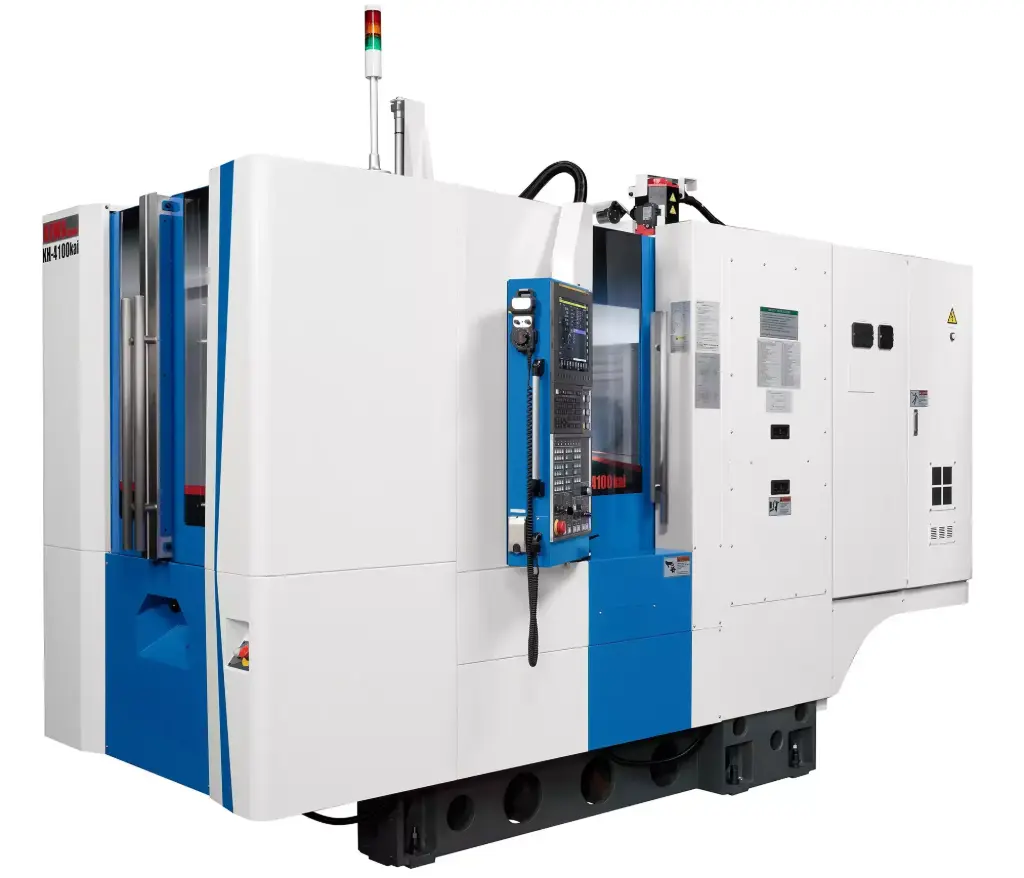

Kiwa KH4200kai

Features And Benefits

• (4) Simultaneously Controlled Axes
• Provision for Coolant Through Spindle
• Coolant Chip flow System
• Spindle Oil Cooler
• Pallet and Chip Wash
• Chip Conveyor – LNS-Turbo MH500
• Tool Life Management
• AICC2 400 block look ahead
• 1280 Meter / 512 kB Memory
• Helical Interpolation
• 200 Tool Off Sets

Technical Data

TRAVEL

• X-Axis Travel - 22 in. (560 mm)
• Y-Axis Travel - 26 in. (660 mm)
• Z-Axis Travel - 22 in. (560 mm)

PALLET

• Spindle Center to Pallet Surface - 3 in. - 28.9 in. (75 mm - 735 mm)
• Pallet Center to Spindle Nose - 3.9 in - 26 in. (100 mm - 660 mm)
• Pallet Size - 15.7 in x 15.7 in. (400 mm x 400 mm)
• Pallet Load Capacity - 1,100 lbs (500 kg)
• Max. Workpiece Size - Ø 24.8 in. x 36.2 in. (630 mm x 920 mm)
• Pallet Change Time - 7.5 sec.

FEED RATE

• X-Axis Rapid Traverse - 3,543.3 ipm (90,000 mm/min)
• Y-Axis Rapid Traverse - 3,543.3 ipm (90,000 mm/min)
• Z-Axis Rapid Traverse - 3,543.3 ipm (90,000 mm/min)
• 4th Axis - 53 rpm
• Cutting Feed - 1,181 ipm (30,000 mm/min)

SPINDLE

• Spindle Power - 20 HP
• Spindle Speed - 15,000 rpm
• Spindle Taper - CAT 40

TOOLS

• Standard Number of Tools - 60
• Maximum Tool Weight - 17.6 lbs (8 kg)
• Maximum Tool Length - 15.7 in. (400 mm)
• Maximum Tool Diameter - Ø 3.3 in. (85 mm) / Ø 5.5 in. (140 mm) when adjacent pts are full/empty)
• Tool-to-Tool Change Time | Chip-to-Chip - 1.1 sec. | 2.7 sec.

GENERAL

• Coolant Tank Capacity - 79.3 gal (300 liters)
• Floor Space (without chip conveyor) - 67.8 in x 162.6 in. (1,722 mm x 4,131 mm)
• Machine Height - 102.5 in. (2,604 mm)
• Machine Weight - 17,200 lbs (7,800 kg)
